| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

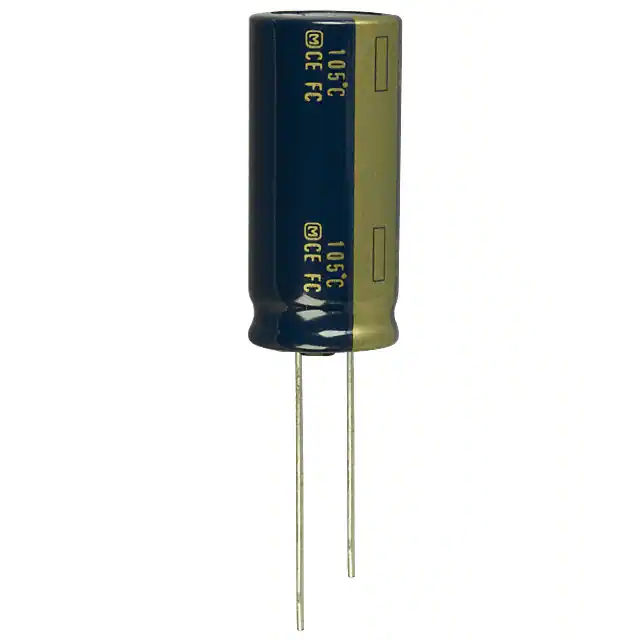

EEU-FC1V272CAP ALUM 2700UF 20% 35V RADIAL |
7,230 | 2.92 |
FFQ |
Datasheet |
Bulk | FC | Active | 2700 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 3.09 A @ 120 Hz | 3.635 A @ 100 kHz | 16 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
EEU-FC1J152CAP ALUM 1500UF 20% 63V RADIAL |
5,637 | 3.16 |
FFQ |
Datasheet |
Bulk | FC | Active | 1500 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.476 A @ 120 Hz | 3.095 A @ 100 kHz | 30 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.398 (35.50mm) | - | Through Hole |
|
EEU-FR2A101CAP ALUM 100UF 20% 100V RAD TH |
7,075 | 1.29 |
FFQ |
Datasheet |
Bulk | FR-A | Active | 100 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | 1.5 A @ 100 kHz | 84 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|

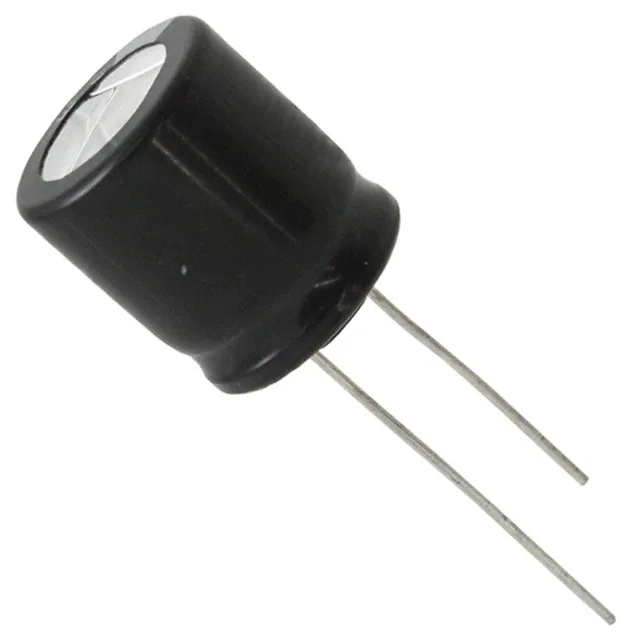

EEU-EB2W470CAP ALUM 47UF 20% 450V RADIAL |
8,065 | 3.51 |
FFQ |
Datasheet |
Bulk | EB-A | Active | 47 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 425 mA @ 120 Hz | 850 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
EEV-EB2C101MCAP ALUM 100UF 20% 160V SMD |
9,552 | 5.34 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EB | Last Time Buy | 100 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 583 mA @ 120 Hz | 1.06 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
EEU-HD1C472BCAP ALUM 4700UF 20% 16V RADIAL |
6,730 | 2.96 |
FFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | HD | Active | 4700 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.48 A @ 120 Hz | 1.702 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|

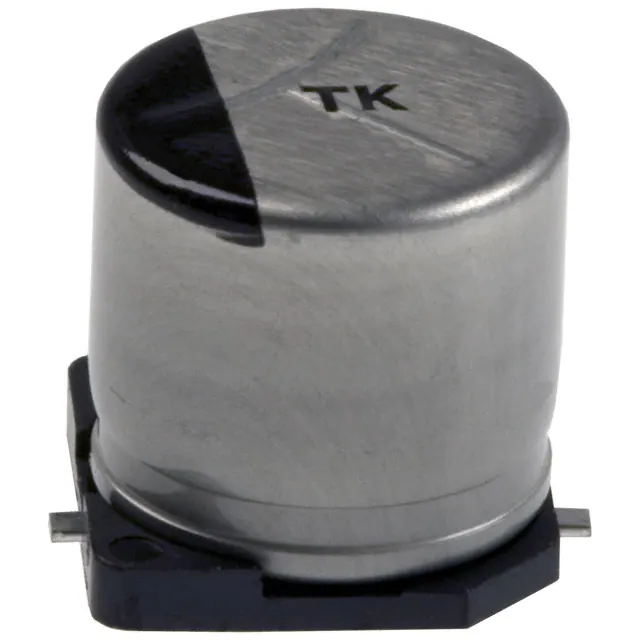

EEE-TKV471UAQCAP ALUM 470UF 20% 35V SMD |
5,165 | 2.37 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TK | Active | 470 µF | ±20% | 35 V | 120mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 800 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.531 (13.50mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|
ECA-2EM221CAP ALUM 220UF 20% 250V RADIAL |
5,488 | 3.93 |
FFQ |
Datasheet |
Bulk | M-A | Active | 220 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.581 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

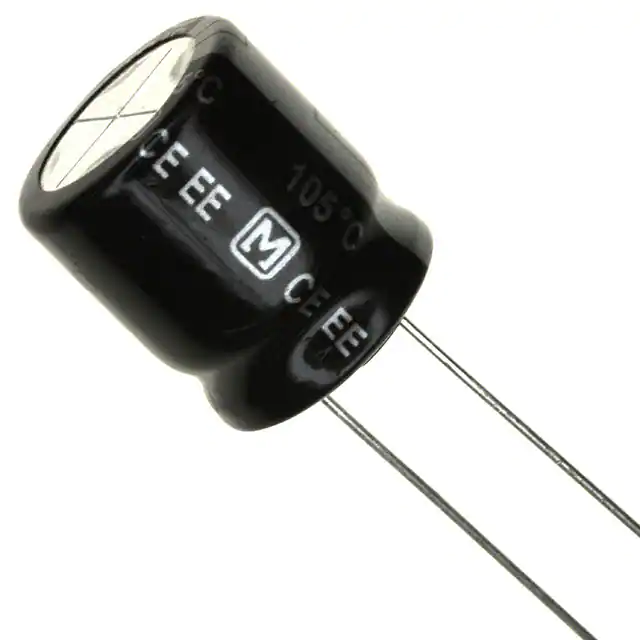

EEU-EE2W680CAP ALUM 68UF 20% 450V RADIAL |
9,969 | 4.95 |
FFQ |
Datasheet |
Bulk | EE-A | Active | 68 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 1.8 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
EEE-FK1K471AMCAP ALUM 470UF 20% 80V SMD |
5,417 | 3.28 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 470 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 687.8 mA @ 120 Hz | 917 mA @ 100 kHz | 153 mOhms | - | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
|
EEE-FK1E332AMCAP ALUM 3300UF 20% 25V SMD |
7,172 | 3.28 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 3300 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.545 A @ 120 Hz | 2.06 A @ 100 kHz | 33 mOhms | - | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
|
EEU-HD1E222CAP ALUM 2200UF 20% 25V RADIAL |
7,539 | 2.46 |
FFQ |
Datasheet |
Bulk | HD | Active | 2200 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 120 Hz | 1.254 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEE-TP1K681MCAP ALUM 680UF 20% 80V SMD |
8,892 | 4.02 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP | Active | 680 µF | ±20% | 80 V | 68mOhm @ 100kHz | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.95 A @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
|
EEE-TP1J102MCAP ALUM 1000UF 20% 63V SMD |
7,602 | 4.02 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP | Active | 1000 µF | ±20% | 63 V | 68mOhm @ 100kHz | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.95 A @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
|
EEU-HD1E332CAP ALUM 3300UF 20% 25V RADIAL |
5,533 | 2.96 |
FFQ |
Datasheet |
Bulk | HD | Active | 3300 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.61 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEE-TP1K681VCAP ALUM 680UF 20% 80V SMD |
9,674 | 4.63 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP, Anti-Vibration | Active | 680 µF | ±20% | 80 V | 68mOhm @ 100kHz | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.95 A @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
EEU-HD1E682CAP ALUM 6800UF 20% 25V RADIAL |
9,128 | 4.25 |
FFQ |
Datasheet |
Bulk | HD | Active | 6800 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 2.346 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|

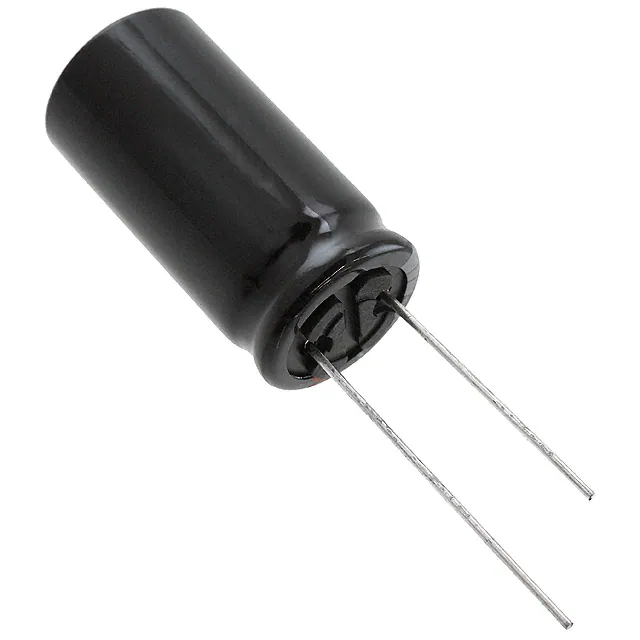

EEU-TP1V202CAP ALUM 2000UF 20% 35V RADIAL |
7,407 | 4.93 |
FFQ |
Datasheet |
Bulk | TP-A | Active | 2000 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.6 A @ 120 Hz | 2.71 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
ECA-1HM4R7BCAP ALUM 4.7UF 20% 50V RADIAL |
12,389 | 0.05 |
FFQ |
Datasheet |
Tape & Box (TB) | M-A | Active | 4.7 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 45 mA @ 120 Hz | 76.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HM3R3ICAP ALUM 3.3UF 20% 50V RADIAL |
11,699 | 0.05 |
FFQ |
Datasheet |
Tape & Box (TB) | M-A | Active | 3.3 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 35 mA @ 120 Hz | 59.5 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
