Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	NumberofCoils	Inductance-ConnectedInParallel	Inductance-ConnectedInSeries	Tolerance	CurrentRating-Parallel	CurrentRating-Series	CurrentSaturation-Parallel	CurrentSaturation-Series	DCResistance(DCR)-Parallel	DCResistance(DCR)-Series	Shielding	Ratings	OperatingTemperature	MountingType	Size/Dimension

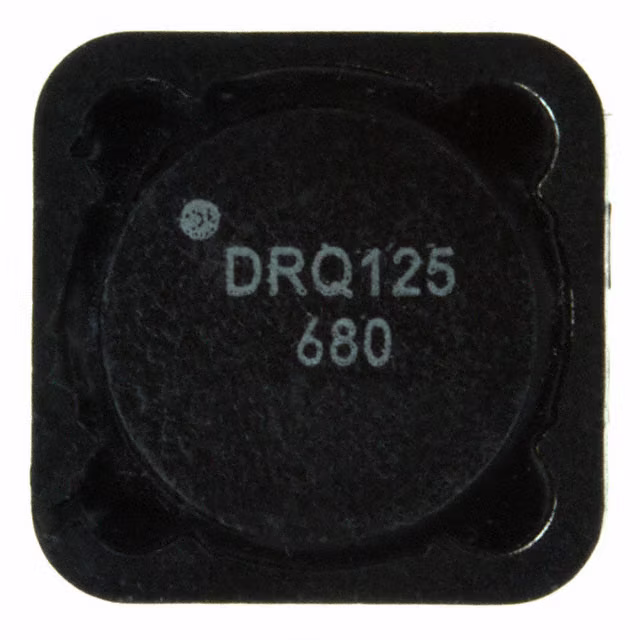

DRQ125-680-R INDUCT ARRAY 2 COIL 67.91UH SMD Eaton - Electronics Division	5,184	2.20	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	DRQ	Active	2	67.91 µH	271.6 µH	±20%	2.22 A	1.11 A	2.7 A	1.35 A	101mOhm	440mOhm	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard

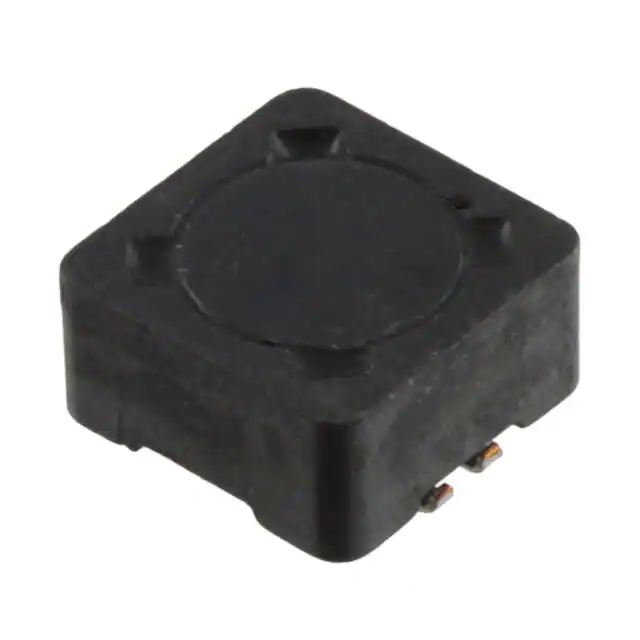

CTX02-18714-R INDUCT ARRAY 2 COIL SMD Eaton - Electronics Division	3,735	2.35	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OCTA-PAC®	Obsolete	2	-	-	-	-	-	-	-	-	-	Unshielded	-	-40°C ~ 85°C	Surface Mount	Nonstandard
CTX8-1P-R INDUCT ARRAY 2 COIL 8.08UH SMD Eaton - Electronics Division	5,599	3.15	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Econo-Pac™	Active	2	8.08 µH	32.33 µH	±20%	1.8 A	900 mA	-	-	52mOhm Max	207mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	Nonstandard
SDQ12-6R2-R INDUCT ARRAY 2 COIL 6.25UH SMD Eaton - Electronics Division	8,494	3.18	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SDQ	Active	2	6.25 µH	25 µH	±20%	1.02 A	512 mA	1.22 A	608 mA	238.7mOhm	954.8mOhm	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard
CTX10-1P-R INDUCT ARRAY 2 COIL 9.62UH SMD Eaton - Electronics Division	8,611	3.67	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Econo-Pac™	Active	2	9.62 µH	38.48 µH	±20%	1.7 A	850 mA	-	-	57mOhm Max	227mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	Nonstandard
SDQ12-150-R INDUCT ARRAY 2 COIL 15.21UH SMD Eaton - Electronics Division	5,703	3.78	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SDQ	Active	2	15.21 µH	60.84 µH	±20%	658 mA	329 mA	779 mA	390 mA	576.6mOhm	2.31Ohm	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard
CTX100-2P-R INDUCT ARRAY 2 COIL 99.14UH SMD Eaton - Electronics Division	5,851	4.16	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Econo-Pac™	Active	2	99.14 µH	396.58 µH	±20%	620 mA	310 mA	-	-	541mOhm Max	2.162Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	Nonstandard
CTX20-1P-R INDUCT ARRAY 2 COIL 20.46UH SMD Eaton - Electronics Division	7,481	4.42	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Econo-Pac™	Active	2	20.46 µH	81.83 µH	±20%	1 A	500 mA	-	-	158mOhm Max	634mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	Nonstandard
SDQ25-100-R INDUCT ARRAY 2 COIL 9.8UH SMD Eaton - Electronics Division	6,826	4.91	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SDQ	Active	2	9.8 µH	39.2 µH	±20%	1.53 A	765 mA	1.29 A	643 mA	106.8mOhm	427.3mOhm	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard
CTX10-2A-R INDUCT ARRAY 2 COIL 11.38UH SMD Eaton - Electronics Division	797	5.02	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OCTA-PAC® PLUS	Obsolete	2	11.38 µH	45.5 µH	±25%	2.89 A	1.45 A	3.13 A	1.56 A	47mOhm Max	188mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	Nonstandard
CTX5-4A-R INDUCT ARRAY 2 COIL 4.26UH SMD Eaton - Electronics Division	8,476	5.79	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OCTA-PAC® PLUS	Active	2	4.26 µH	17.05 µH	±25%	7.21 A	3.61 A	6.43 A	3.21 A	8.5mOhm Max	33.9mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	Nonstandard
CTX50-3P-R INDUCT ARRAY 2 COIL 50.02UH SMD Eaton - Electronics Division	9,787	5.94	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Econo-Pac™	Active	2	50.02 µH	200.1 µH	±20%	920 mA	460 mA	-	-	277mOhm Max	1.108Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	Nonstandard
CTX20-4A-R INDUCT ARRAY 2 COIL 19.58UH SMD Eaton - Electronics Division	9,804	5.97	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OCTA-PAC® PLUS	Active	2	19.58 µH	78.3 µH	±25%	3.62 A	1.81 A	3 A	1.5 A	34mOhm Max	135mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	Nonstandard
CTX100-1-R INDUCT ARRAY 2 COIL 99.23UH SMD Eaton - Electronics Division	9,661	5.98	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OCTA-PAC®	Active	2	99.23 µH	396.9 µH	±20%	440 mA	220 mA	-	-	784mOhm Max	3.137Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	Nonstandard
CTX300-4-R INDUCT ARRAY 2 COIL 298.12UH SMD Eaton - Electronics Division	5,771	6.48	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OCTA-PAC®	Active	2	298.12 µH	1.2 mH	±20%	620 mA	310 mA	-	-	672mOhm Max	2.687Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	Nonstandard
CTX10-3-R INDUCT ARRAY 2 COIL 9.6UH SMD Eaton - Electronics Division	7,382	6.80	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OCTA-PAC®	Active	2	9.6 µH	38.4 µH	±20%	2.7 A	1.35 A	-	-	28mOhm Max	111mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	Nonstandard
DRAQ127-470-R INDUCT ARRAY 2 COIL 47.9UH SMD Eaton - Electronics Division	6,543	1.52	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	DRAQ127	Active	2	47.9 µH	192 µH	±25%	2.62 A	1.31 A	4.07 A	2.03 A	110mOhm Max	440mOhm Max	Shielded	AEC-Q200	-40°C ~ 165°C	Surface Mount	Nonstandard
DRQ73-101-R INDUCT ARRAY 2 COIL 101.4UH SMD Eaton - Electronics Division	9,039	1.54	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	DRQ	Active	2	101.4 µH	405.6 µH	±20%	730 mA	367 mA	790 mA	390 mA	527mOhm	2.11Ohm	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard
DRQ125-R47-R INDUCT ARRAY 2 COIL 456NH SMD Eaton - Electronics Division	5,691	2.09	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	DRQ	Active	2	456 nH	1.824 µH	±20%	17.6 A	8.8 A	33 A	16.5 A	1.8mOhm	7.8mOhm	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard
DRQ125-4R7-R INDUCT ARRAY 2 COIL 5.274UH SMD Eaton - Electronics Division	8,568	2.09	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	DRQ	Active	2	5.274 µH	21.1 µH	±20%	7.18 A	3.59 A	9.71 A	4.86 A	10.5mOhm	42mOhm	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard
