Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	DiodeType	Voltage-PeakReverse(Max)	Current-Max	Capacitance@VrF	Resistance@IfF	PowerDissipation(Max)	OperatingTemperature
RN141CMT2R PIN DIODE 50V 100MA VMN2M Rohm Semiconductor	11,545	0.49	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	-	-	-
RN771VTE-17 RF DIODE PIN 50V UMD2 Rohm Semiconductor	13,898	0.42	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	50V	50 mA	0.9pF @ 35V, 1MHz	7Ohm @ 10mA, 100MHz	-	150°C (TJ)
RN242CST2R RF DIODE PIN 30V VMN2 Rohm Semiconductor	12,328	0.08	- + FFQ	Datasheet	Tape & Reel (TR)	-	Active	PIN - Single	30V	100 mA	0.35pF @ 1V, 1MHz	1.5Ohm @ 10mA, 100MHz	-	150°C (TJ)
1SS356TW11 RF DIODE STANDARD 35V 200MW UMD2 Rohm Semiconductor	10,688	0.08	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard - Single	35V	100 mA	1.2pF @ 6V, 1MHz	900mOhm @ 2mA, 100MHz	200 mW	125°C (TJ)
RN242CST2RA RF DIODE PIN 30V VMN2 Rohm Semiconductor	12,809	0.38	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	*	Active	-	-	-	-	-	-	-
RN142VTE-17 RF DIODE PIN 60V UMD2 Rohm Semiconductor	11,485	0.10	- + FFQ	Datasheet	Tape & Reel (TR)	-	Active	PIN - Single	60V	100 mA	0.45pF @ 1V, 1MHz	3Ohm @ 3mA, 100MHz	-	150°C (TJ)
RN731VFHTE-17 RF DIODE PIN 50V UMD2 Rohm Semiconductor	10,477	0.10	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	PIN - Single	50V	50 mA	0.4pF @ 35V, 1MHz	7Ohm @ 10mA, 100MHz	-	125°C (TJ)
RN741VTE-17 RF DIODE PIN 50V UMD2 Rohm Semiconductor	12,339	0.13	- + FFQ	Datasheet	Tape & Reel (TR)	-	Active	PIN - Single	50V	50 mA	0.4pF @ 35V, 1MHz	10Ohm @ 10mA, 100MHz	-	150°C (TJ)
RN739DT146 RF DIODE PIN 50V 100MW SMD3 Rohm Semiconductor	13,995	0.14	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - 1 Pair Series Connection	50V	50 mA	0.4pF @ 35V, 1MHz	7Ohm @ 10mA, 100MHz	100 mW	125°C (TJ)
RN731KTL DIODE PIN 50V Rohm Semiconductor	14,001	0.18	- + FFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-
RN142GT2R RF DIODE PIN 60V VMD2 Rohm Semiconductor	2,954	0.41	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	60V	100 mA	0.45pF @ 1V, 1MHz	2Ohm @ 10mA, 100MHz	-	150°C (TJ)

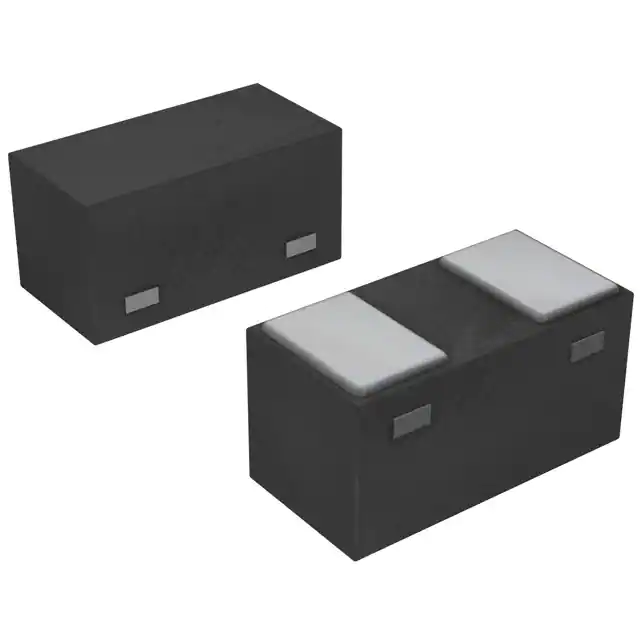

RN142ZST2R RF DIODE PIN 30V GMD2 Rohm Semiconductor	3,791	0.00	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	30V	50 mA	0.45pF @ 1V, 1MHz	1.5Ohm @ 10mA, 100MHz	-	150°C (TJ)
RN262GT2R RF DIODE PIN 30V 100MW VMD2 Rohm Semiconductor	2,040	0.00	- + FFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	PIN - Single	30V	100 mA	0.4pF @ 1V, 1MHz	1.5Ohm @ 10mA, 100MHz	100 mW	150°C (TJ)

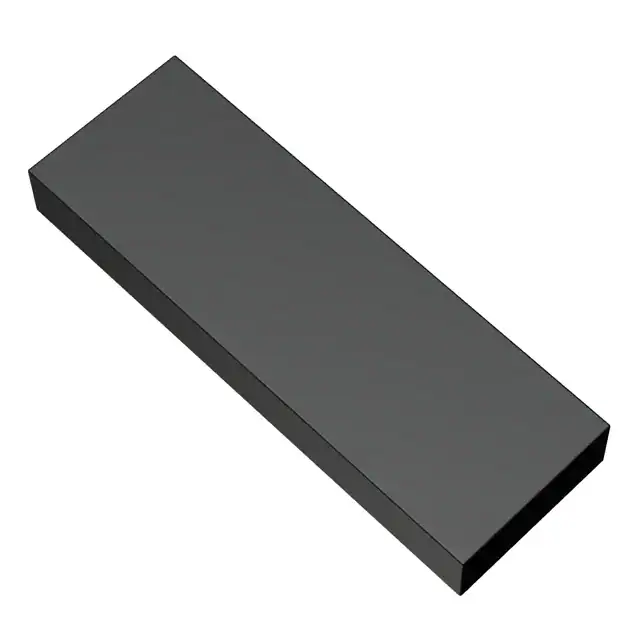

RN142ZS12ATE61 RF DIODE PIN 30V HMD12 Rohm Semiconductor	3,738	0.00	- + FFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	PIN - 6 Independent	30V	50 mA	0.45pF @ 1V, 1MHz	1.5Ohm @ 10mA, 100MHz	-	150°C (TJ)

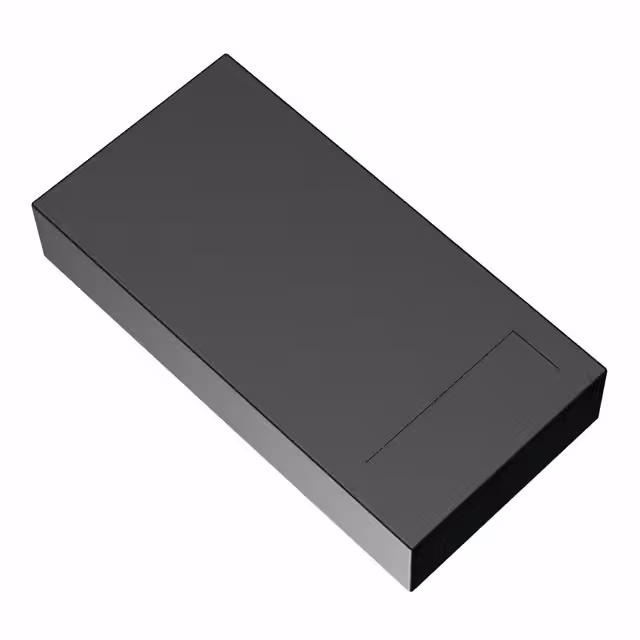

RN142ZS8ATE61 RF DIODE PIN 30V 8HMD Rohm Semiconductor	2,570	0.00	- + FFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	PIN - 4 Independent	30V	50 mA	0.45pF @ 1V, 1MHz	1.5Ohm @ 10mA, 100MHz	-	150°C (TJ)
RN141GT2R RF DIODE PIN 50V VMD2 Rohm Semiconductor	3,637	0.00	- + FFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	PIN - Single	50V	100 mA	0.8pF @ 1V, 1MHz	2Ohm @ 3mA, 100MHz	-	150°C (TJ)
RN142STE61 RF DIODE PIN 60V 150MW EMD2 Rohm Semiconductor	3,276	0.00	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	PIN - Single	60V	100 mA	0.45pF @ 1V, 1MHz	2Ohm @ 10mA, 100MHz	150 mW	150°C (TJ)
RN152GT2R RF DIODE PIN 30V VMD2 Rohm Semiconductor	3,206	0.00	- + FFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	PIN - Single	30V	100 mA	0.45pF @ 1V, 1MHz	4.8Ohm @ 1mA, 100MHz	-	150°C (TJ)
RN771VFHTE-17 RF DIODE PIN 50V UMD2 Rohm Semiconductor	10,999	0.00	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Not For New Designs	PIN - Single	50V	50 mA	0.9pF @ 35V, 1MHz	7Ohm @ 10mA, 100MHz	-	150°C (TJ)
RN142S9HLTE61 RF DIODE PIN SMD Rohm Semiconductor	2,526	0.00	- + FFQ		Tape & Reel (TR)	-	Obsolete	-	-	-	-	-	-	-
