Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	Ratings	OperatingTemperature	MountingType	Height(Max)	Size/Dimension
MAF1608GAD121LTAH0 NOISE SUPPRESSION FILTER FOR AUD TDK Corporation	10,921	0.21	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MAF	Active	Power Line	1	-	3.2A	-	-	-55°C ~ 125°C	Surface Mount	0.030 (0.75mm)	0.063 L x 0.031 W (1.60mm x 0.80mm)
VAF201610FA-841-1 NOISE SUPPRESSION FILTER FOR AUD TDK Corporation	13,922	0.46	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VAF	Active	Power Line	1	-	-	-	-	-40°C ~ 105°C	Surface Mount	0.039 (1.00mm)	0.079 L x 0.063 W (2.00mm x 1.60mm)
VFS5045VA111 NOISE SUPPRESSION FILTER FOR HOM TDK Corporation	11,847	0.44	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VFS	Active	Power Line	1	-	4.7A	-	-	-40°C ~ 105°C	Surface Mount	0.177 (4.50mm)	0.197 L x 0.197 W (5.00mm x 5.00mm)
VFS5045VA151 NOISE SUPPRESSION FILTER FOR HOM TDK Corporation	12,468	0.44	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VFS	Active	Power Line	1	-	4.2A	-	-	-40°C ~ 105°C	Surface Mount	0.177 (4.50mm)	0.197 L x 0.197 W (5.00mm x 5.00mm)
VFS5045VA102 NOISE SUPPRESSION FILTER FOR HOM TDK Corporation	11,799	0.44	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VFS	Active	Power Line	1	-	1.9A	-	-	-40°C ~ 105°C	Surface Mount	0.177 (4.50mm)	0.197 L x 0.197 W (5.00mm x 5.00mm)
VFS5045SA151 NOISE SUPPRESSION FILTER FOR HOM TDK Corporation	11,594	0.44	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VFS	Active	Power Line	1	-	1.3A	-	-	-40°C ~ 105°C	Surface Mount	0.177 (4.50mm)	0.197 L x 0.197 W (5.00mm x 5.00mm)
VFS6045VA031 NOISE SUPPRESSION FILTER FOR HOM TDK Corporation	12,655	0.48	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VFS	Active	Power Line	1	-	6A	-	-	-40°C ~ 105°C	Surface Mount	0.177 (4.50mm)	0.236 L x 0.236 W (6.00mm x 6.00mm)
VFS6045VA121 NOISE SUPPRESSION FILTER FOR HOM TDK Corporation	14,057	0.48	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VFS	Active	Power Line	1	-	5.1A	24.7mOhm	-	-40°C ~ 105°C	Surface Mount	0.177 (4.50mm)	0.236 L x 0.236 W (6.00mm x 6.00mm)
VFS6045VA201 NOISE SUPPRESSION FILTER FOR HOM TDK Corporation	12,320	0.48	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VFS	Active	Power Line	1	-	-	29.9mOhm	-	-40°C ~ 105°C	Surface Mount	0.177 (4.50mm)	0.236 L x 0.236 W (6.00mm x 6.00mm)
VFS6045VA301 NOISE SUPPRESSION FILTER FOR HOM TDK Corporation	14,430	0.48	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VFS	Active	Power Line	1	-	3.6A	-	-	-40°C ~ 105°C	Surface Mount	0.177 (4.50mm)	0.236 L x 0.236 W (6.00mm x 6.00mm)
VFS6045SA151 NOISE SUPPRESSION FILTER FOR HOM TDK Corporation	10,189	0.48	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VFS	Active	Power Line	1	-	1.5A	-	-	-40°C ~ 105°C	Surface Mount	0.177 (4.50mm)	0.236 L x 0.236 W (6.00mm x 6.00mm)
VFS6045SA451 NOISE SUPPRESSION FILTER FOR HOM TDK Corporation	12,657	0.48	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VFS	Active	Power Line	1	-	900mA	-	-	-40°C ~ 105°C	Surface Mount	0.177 (4.50mm)	0.236 L x 0.236 W (6.00mm x 6.00mm)
MMZ1005F560CT000 FERRITE BEAD 56 OHM 0402 1LN TDK Corporation	14,159	0.10	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MMZ	Active	Signal Line	1	56 Ohms @ 100 MHz	100mA	700mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MPZ1005S300CT000 FERRITE BEAD 30 OHM 0402 1LN TDK Corporation	14,835	0.10	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MPZ	Active	Power Line	1	30 Ohms @ 100 MHz	1.7A	35mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MMZ1005S800HTD25 CHIP BEADS FOR AUTOMOTIVE, FOR G TDK Corporation	14,615	0.10	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MMZ	Active	Signal Line	1	80 Ohms @ 100 MHz	800mA	100mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MMZ1608SHE121ATD25 CHIP BEADS FOR AUTOMOTIVE, FOR G TDK Corporation	11,778	0.21	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MMZ-HE	Active	Signal Line	1	120 Ohms @ 100 MHz	500mA	150mOhm	AEC-Q200	-55°C ~ 150°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.031 W (1.60mm x 0.80mm)
MMZ1608SHE471ATD25 CHIP BEADS FOR AUTOMOTIVE, FOR G TDK Corporation	13,565	0.21	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MMZ-HE	Active	Signal Line	1	470 Ohms @ 100 MHz	500mA	300mOhm	AEC-Q200	-55°C ~ 150°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.031 W (1.60mm x 0.80mm)

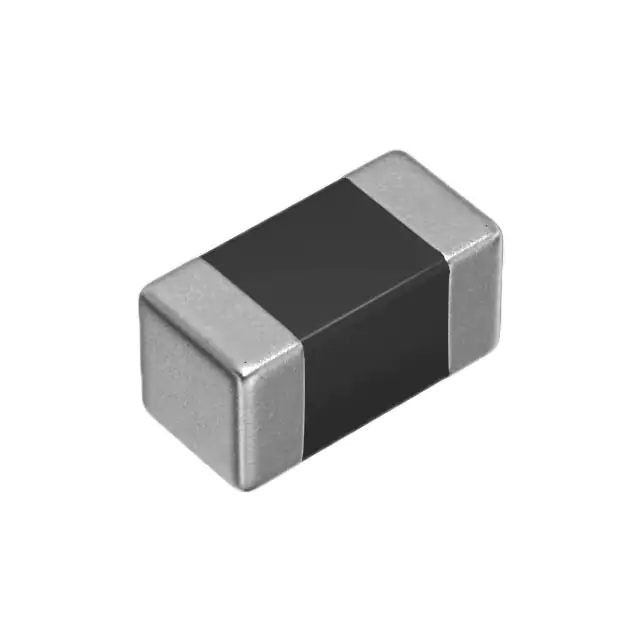

MAF1005PAD120CT000 NOISE SUPPRESSION FILTER FOR POW TDK Corporation	12,493	0.24	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MAF	Active	Power Line	1	12 Ohms @ 900 MHz	6A	9mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MMZ0402Y151CT000 FERRITE BEAD 150 OHM 01005 1LN TDK Corporation	11,771	0.25	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ	Active	Signal Line	1	150 Ohms @ 100 MHz	200mA	690mOhm	-	-55°C ~ 125°C	Surface Mount	0.009 (0.22mm)	0.016 L x 0.008 W (0.40mm x 0.20mm)
MAF0603FAL470BT000 NOISE SUPPRESSION FILTER FOR AUD TDK Corporation	13,697	0.28	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MAF	Active	Power Line	1	47 Ohms @ 100 MHz	200mA	700mOhm	-	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.024 L x 0.012 W (0.60mm x 0.30mm)
