Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	Ratings	OperatingTemperature	MountingType	Height(Max)	Size/Dimension
MMZ0402S121CT000 FERRITE BEAD 120 OHM 01005 1LN TDK Corporation	10,167	0.25	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ	Active	Signal Line	1	120 Ohms @ 100 MHz	210mA	700mOhm	-	-55°C ~ 125°C	Surface Mount	0.009 (0.22mm)	0.016 L x 0.008 W (0.40mm x 0.20mm)
MPZ1005A151ET000 FERRITE BEAD 150 OHM 0402 1LN TDK Corporation	11,276	0.25	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MPZ-E	Active	Power Line	1	150 Ohms @ 100 MHz	800mA	180mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MPZ1005D750ET000 FERRITE BEAD 75 OHM 0402 1LN TDK Corporation	10,882	0.25	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MPZ-E	Active	Power Line	1	75 Ohms @ 100 MHz	600mA	300mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
HF50ACB321611-T FERRITE BEAD 31 OHM 1206 1LN TDK Corporation	14,804	0.21	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HF-ACB	Last Time Buy	Signal Line	1	31 Ohms @ 100 MHz	500mA	200mOhm	-	-40°C ~ 125°C	Surface Mount	0.051 (1.30mm)	0.126 L x 0.063 W (3.20mm x 1.60mm)
MPZ1005AFZ100NT000 FERRITE BEAD 10 OHM 0402 1LN TDK Corporation	11,727	0.25	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MPZ-N	Active	Power Line	1	10 Ohms @ 100 MHz	1.2A	150mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MAF1005GWZ102AT000 NOISE SUPPRESSION FILTER FOR AUD TDK Corporation	12,703	0.24	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MAF	Active	-	1	160 Ohms @ 100 MHz	150mA	1.6Ohm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
HF70ACC322513-TD25 FERRITE BEAD 52 OHM 1210 1LN TDK Corporation	12,187	0.27	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HF-ACC	Last Time Buy	Signal Line	1	52 Ohms @ 100 MHz	1.5A	50mOhm	AEC-Q200	-40°C ~ 125°C	Surface Mount	0.059 (1.50mm)	0.126 L x 0.098 W (3.20mm x 2.50mm)
MPZ1005S300CTD25 FERRITE BEAD 30 OHM 0402 1LN TDK Corporation	13,442	0.29	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MPZ	Active	Power Line	1	30 Ohms @ 100 MHz	1.7A	35mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)

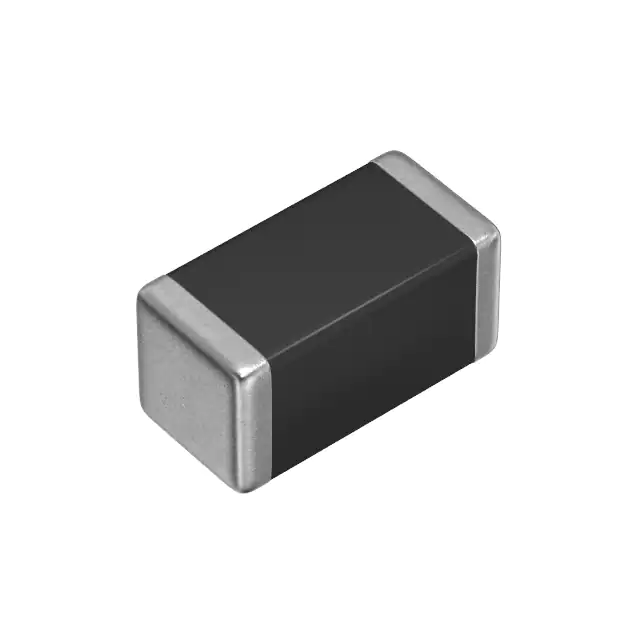

MDF1005GAD102ATD25 NOISE SUPPRESSION FILTER FOR UHF TDK Corporation	11,443	0.29	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MDF	Active	Power Line	1	1 kOhms @ 900 MHz	550mA	690mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MPZ1005F330ETD25 FERRITE BEAD 33 OHM 0402 1LN TDK Corporation	10,112	0.29	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MPZ-E	Active	Power Line	1	33 Ohms @ 100 MHz	550mA	350mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MMZ0603S121ET000 FERRITE BEAD 120 OHM 0201 1LN TDK Corporation	14,150	0.30	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-E	Active	Signal Line	1	120 Ohms @ 100 MHz	250mA	370mOhm	-	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.024 L x 0.012 W (0.60mm x 0.30mm)
MMZ0603D330ET000 FERRITE BEAD 33 OHM 0201 1LN TDK Corporation	11,061	0.30	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-E	Active	Signal Line	1	33 Ohms @ 100 MHz	250mA	600mOhm	-	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.024 L x 0.012 W (0.60mm x 0.30mm)
MMZ0603S241ET000 FERRITE BEAD 240 OHM 0201 1LN TDK Corporation	12,854	0.30	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-E	Active	Signal Line	1	240 Ohms @ 100 MHz	200mA	710mOhm	-	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.024 L x 0.012 W (0.60mm x 0.30mm)
MMZ0603D470ET000 FERRITE BEAD 47 OHM 0201 1LN TDK Corporation	11,086	0.30	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-E	Active	Signal Line	1	47 Ohms @ 100 MHz	200mA	760mOhm	-	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.024 L x 0.012 W (0.60mm x 0.30mm)
MMZ0603A121ET000 FERRITE BEAD 120 OHM 0201 1LN TDK Corporation	11,082	0.30	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-E	Active	Signal Line	1	120 Ohms @ 100 MHz	250mA	440mOhm	-	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.024 L x 0.012 W (0.60mm x 0.30mm)
HF70ACC575018-T FERRITE BEAD 150 OHM 2220 1LN TDK Corporation	12,808	0.73	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ACC	Last Time Buy	Power Line	1	150 Ohms @ 100 MHz	3A	40mOhm	-	-	Surface Mount	0.083 (2.10mm)	0.224 L x 0.197 W (5.70mm x 5.00mm)

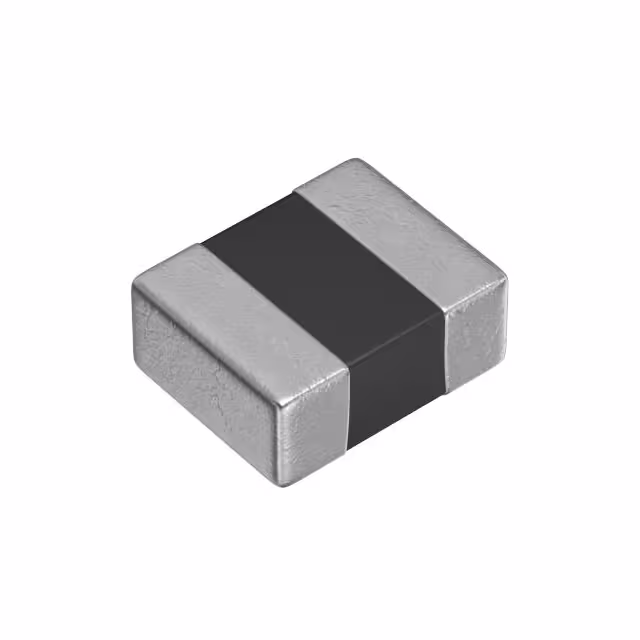

MDF2016BSS180CTD25 NOISE SUPPRESSION FILTER FOR POW TDK Corporation	10,235	0.41	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MDF	Active	Power Line	1	18 Ohms @ 2 MHz	1.1A	200mOhm	AEC-Q200	-40°C ~ 125°C	Surface Mount	0.039 (1.00mm)	0.079 L x 0.063 W (2.00mm x 1.60mm)
VAF201610FA-281-1 NOISE SUPPRESSION FILTER FOR AUD TDK Corporation	14,543	0.43	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VAF	Active	Power Line	1	-	-	50mOhm	-	-40°C ~ 105°C	Surface Mount	0.039 (1.00mm)	0.079 L x 0.063 W (2.00mm x 1.60mm)
VAF201610FA-441-1 NOISE SUPPRESSION FILTER FOR AUD TDK Corporation	12,212	0.43	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VAF	Active	Power Line	1	-	-	-	-	-40°C ~ 105°C	Surface Mount	0.039 (1.00mm)	0.079 L x 0.063 W (2.00mm x 1.60mm)
MMZ1608R301CTAH0 FERRITE BEAD 300 OHM 0603 1LN TDK Corporation	12,076	0.10	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ	Not For New Designs	Signal Line	1	300 Ohms @ 100 MHz	500mA	250mOhm	-	-55°C ~ 125°C	Surface Mount	0.030 (0.75mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
