Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	Ratings	OperatingTemperature	MountingType	Height(Max)	Size/Dimension
MMZ0603S601ET FERRITE BEAD 600 OHM 0201 1LN TDK Corporation	10,226	0.10	- + FFQ		Tape & Reel (TR)	MMZ-E	Active	Signal Line	1	600 Ohms @ 100 MHz	280mA	750mOhm	-	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.024 L x 0.012 W (0.60mm x 0.30mm)

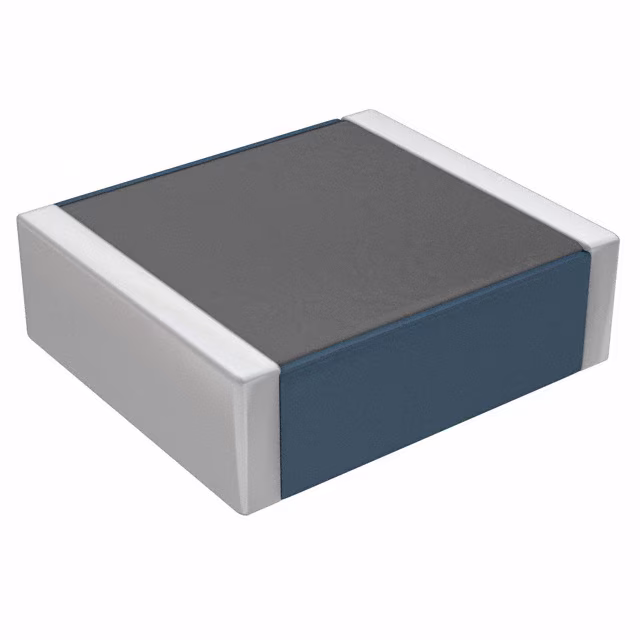

HF30ACC575018-T FERRITE CHIP 100 OHM 3A SMD TDK Corporation	10,971	0.35	- + FFQ	Datasheet	Tape & Reel (TR)	ACC	Last Time Buy	Differential Mode - Single	1	100 Ohms @ 100 MHz	-	-	-	-	Surface Mount	0.083 (2.10mm)	0.224 L x 0.197 W (5.70mm x 5.00mm)
HF70RH12X15X7.3 FERRITE CYLINDRICAL 12 X 15 TDK Corporation	12,107	0.35	- + FFQ	Datasheet	Bulk	*	Last Time Buy	-	-	-	-	-	-	-	-	-	-

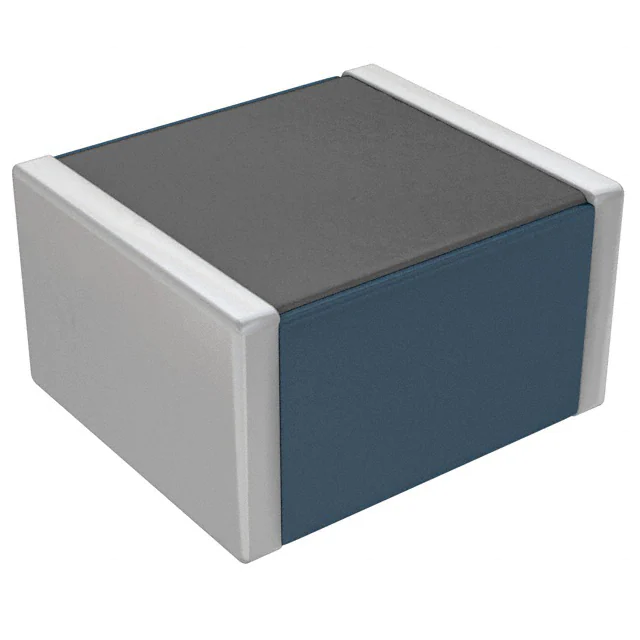

HF50ACC575032-T FERRITE BEAD 400 OHM 2220 1LN TDK Corporation	10,097	0.79	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ACC	Last Time Buy	Power Line	1	400 Ohms @ 100 MHz	3A	40mOhm	-	-	Surface Mount	0.138 (3.50mm)	0.224 L x 0.197 W (5.70mm x 5.00mm)
HF70ACC575032-T FERRITE BEAD 300 OHM 2220 1LN TDK Corporation	10,096	0.79	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ACC	Last Time Buy	Power Line	1	300 Ohms @ 100 MHz	3A	40mOhm	-	-	Surface Mount	0.138 (3.50mm)	0.224 L x 0.197 W (5.70mm x 5.00mm)
HF70ACC635050-T FERRITE BEAD 500 OHM 2520 1LN TDK Corporation	9,056	1.04	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ACC	Last Time Buy	Power Line	1	500 Ohms @ 100 MHz	3A	40mOhm	-	-	Surface Mount	0.198 (5.04mm)	0.252 L x 0.197 W (6.40mm x 5.00mm)

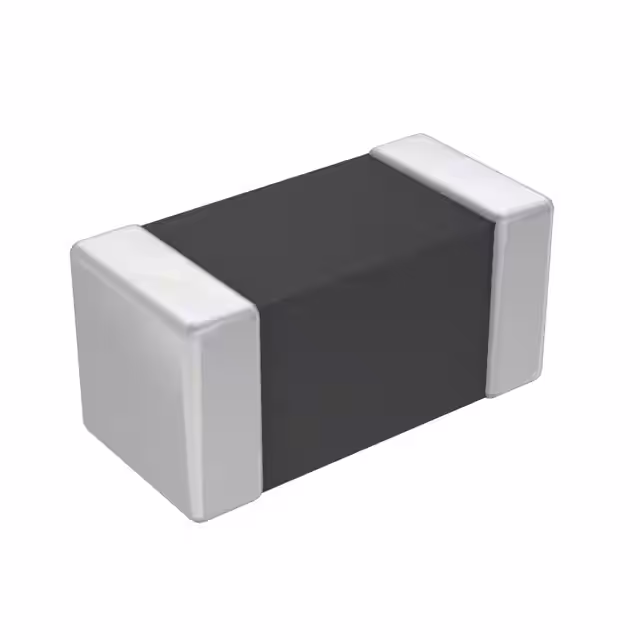

ACB1608M-040-T FERRITE BEAD 40 OHM 0603 1LN TDK Corporation	2,757	0.00	- + FFQ	Datasheet	Tape & Reel (TR)	ACB	Obsolete	Signal Line	1	40 Ohms @ 100 MHz	400mA	300mOhm	-	-	Surface Mount	0.043 (1.10mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
ACB1608H-030-T FERRITE BEAD 30 OHM 0603 1LN TDK Corporation	3,456	0.00	- + FFQ	Datasheet	Tape & Reel (TR)	ACB	Obsolete	Signal Line	1	30 Ohms @ 100 MHz	300mA	400mOhm	-	-	Surface Mount	0.043 (1.10mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
ACB1608H-015-T FERRITE BEAD 15 OHM 0603 1LN TDK Corporation	3,011	0.00	- + FFQ	Datasheet	Tape & Reel (TR)	ACB	Obsolete	Signal Line	1	15 Ohms @ 100 MHz	400mA	300mOhm	-	-	Surface Mount	0.043 (1.10mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
ACB1608L-015-T FERRITE BEAD 15 OHM 0603 1LN TDK Corporation	2,686	0.00	- + FFQ	Datasheet	Tape & Reel (TR)	ACB	Obsolete	Signal Line	1	15 Ohms @ 100 MHz	500mA	100mOhm	-	-	Surface Mount	0.043 (1.10mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
ACB1608L-030-T FERRITE BEAD 30 OHM 0603 1LN TDK Corporation	2,396	0.00	- + FFQ	Datasheet	Tape & Reel (TR)	ACB	Obsolete	Signal Line	1	30 Ohms @ 100 MHz	400mA	300mOhm	-	-	Surface Mount	0.043 (1.10mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
ACB1608H-060-T FERRITE BEAD 60 OHM 0603 1LN TDK Corporation	3,924	0.00	- + FFQ	Datasheet	Tape & Reel (TR)	ACB	Obsolete	Signal Line	1	60 Ohms @ 100 MHz	200mA	700mOhm	-	-	Surface Mount	0.043 (1.10mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
ACB1608L-060-T FERRITE BEAD 60 OHM 0603 1LN TDK Corporation	2,429	0.00	- + FFQ	Datasheet	Tape & Reel (TR)	ACB	Obsolete	Signal Line	1	60 Ohms @ 100 MHz	300mA	400mOhm	-	-	Surface Mount	0.043 (1.10mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
ACB1608M-080-T FERRITE BEAD 80 OHM 0603 1LN TDK Corporation	2,376	0.00	- + FFQ	Datasheet	Tape & Reel (TR)	ACB	Obsolete	Signal Line	1	80 Ohms @ 100 MHz	300mA	500mOhm	-	-	Surface Mount	0.043 (1.10mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)

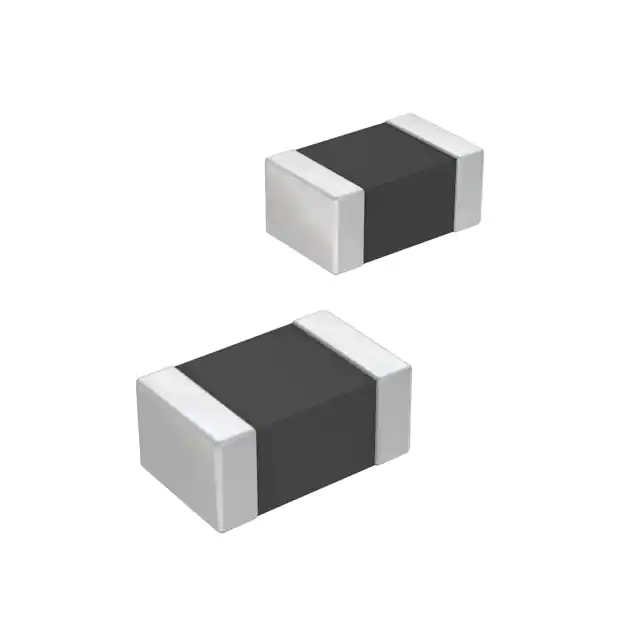

ACB2012H-030-T FERRITE BEAD 30 OHM 0805 1LN TDK Corporation	2,591	0.00	- + FFQ	Datasheet	Tape & Reel (TR)	ACB	Obsolete	Signal Line	1	30 Ohms @ 100 MHz	300mA	400mOhm	-	-	Surface Mount	0.043 (1.10mm)	0.079 L x 0.049 W (2.00mm x 1.25mm)
ACB2012L-030-T FERRITE BEAD 30 OHM 0805 1LN TDK Corporation	3,826	0.00	- + FFQ	Datasheet	Tape & Reel (TR)	ACB	Obsolete	Signal Line	1	30 Ohms @ 100 MHz	500mA	300mOhm	-	-	Surface Mount	0.043 (1.10mm)	0.079 L x 0.049 W (2.00mm x 1.25mm)
ACB2012L-015-T FERRITE BEAD 15 OHM 0805 1LN TDK Corporation	3,360	0.00	- + FFQ	Datasheet	Tape & Reel (TR)	ACB	Obsolete	Signal Line	1	15 Ohms @ 100 MHz	600mA	100mOhm	-	-	Surface Mount	0.043 (1.10mm)	0.079 L x 0.049 W (2.00mm x 1.25mm)
ACB2012M-080-T FERRITE BEAD 80 OHM 0805 1LN TDK Corporation	3,320	0.00	- + FFQ	Datasheet	Tape & Reel (TR)	ACB	Obsolete	Signal Line	1	80 Ohms @ 100 MHz	400mA	400mOhm	-	-	Surface Mount	0.043 (1.10mm)	0.079 L x 0.049 W (2.00mm x 1.25mm)
ACB2012H-015-T FERRITE BEAD 15 OHM 0805 1LN TDK Corporation	2,523	0.00	- + FFQ	Datasheet	Tape & Reel (TR)	ACB	Obsolete	Signal Line	1	15 Ohms @ 100 MHz	400mA	300mOhm	-	-	Surface Mount	0.043 (1.10mm)	0.079 L x 0.049 W (2.00mm x 1.25mm)
ACB2012H-060-T FERRITE BEAD 60 OHM 0805 1LN TDK Corporation	2,652	0.00	- + FFQ	Datasheet	Tape & Reel (TR)	ACB	Obsolete	Signal Line	1	60 Ohms @ 100 MHz	300mA	500mOhm	-	-	Surface Mount	0.043 (1.10mm)	0.079 L x 0.049 W (2.00mm x 1.25mm)
