Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	Ratings	OperatingTemperature	MountingType	Height(Max)	Size/Dimension

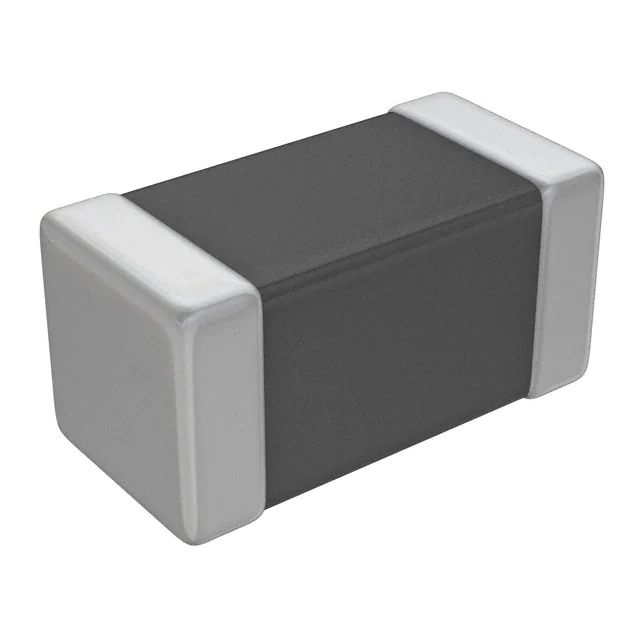

MPZ1608Y101BTD25 FERRITE BEAD 100 OHM 0603 1LN TDK Corporation	13,876	0.10	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MPZ	Active	Power Line	1	100 Ohms @ 100 MHz	2A	40mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.032 W (1.60mm x 0.80mm)
MPZ1005S100CT000 FERRITE BEAD 10 OHM 0402 1LN TDK Corporation	13,873	0.10	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MPZ	Active	Power Line	1	10 Ohms @ 100 MHz	3A	25mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)

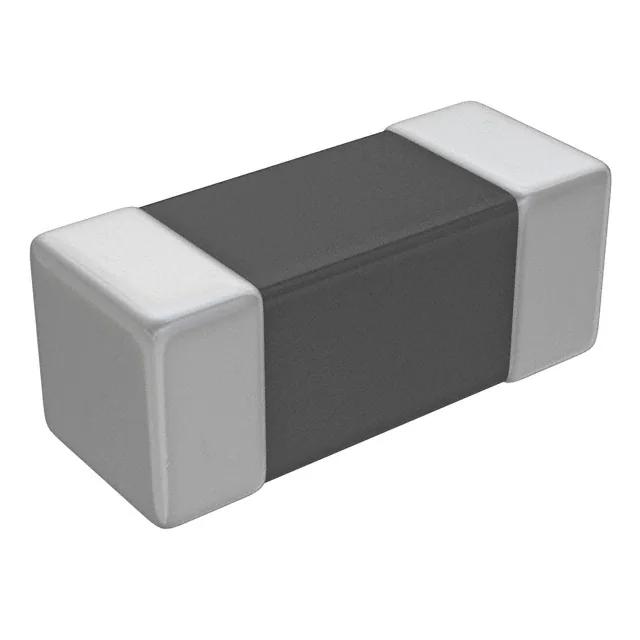

MMZ2012S301AT000 FERRITE BEAD 300 OHM 0805 1LN TDK Corporation	14,435	0.10	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ	Active	Signal Line	1	300 Ohms @ 100 MHz	600mA	200mOhm	-	-55°C ~ 125°C	Surface Mount	0.041 (1.05mm)	0.079 L x 0.049 W (2.00mm x 1.25mm)
MMZ1005A182ET000 FERRITE BEAD 1.8 KOHM 0402 1LN TDK Corporation	14,424	0.20	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-E	Active	Signal Line	1	1.8 kOhms @ 100 MHz	200mA	2.1Ohm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MMZ1005S102ET000 FERRITE BEAD 1 KOHM 0402 1LN TDK Corporation	13,759	0.20	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-E	Active	Signal Line	1	1 kOhms @ 100 MHz	250mA	1Ohm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MMZ1005S601ET000 FERRITE BEAD 600 OHM 0402 1LN TDK Corporation	10,522	0.20	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-E	Active	Signal Line	1	600 Ohms @ 100 MHz	300mA	650mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)

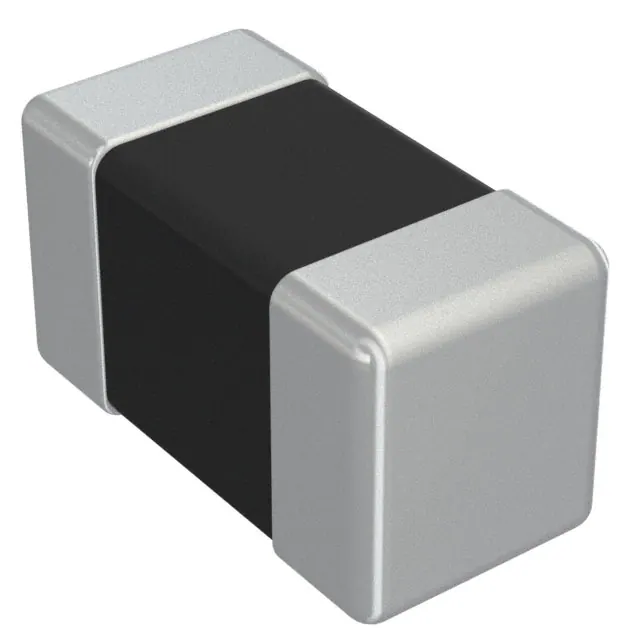

MPZ1005S330HT000 FERRITE BEAD 33 OHM 0402 1LN TDK Corporation	10,111	0.12	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MPZ-H	Active	Power Line	1	33 Ohms @ 100 MHz	3A	22mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MPZ1005S121HT000 FERRITE BEAD 120 OHM 0402 1LN TDK Corporation	11,551	0.12	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MPZ-H	Active	Power Line	1	120 Ohms @ 100 MHz	2A	55mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MPZ1005S900HT000 FERRITE BEAD 90 OHM 0402 1LN TDK Corporation	12,420	0.12	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MPZ-H	Active	Power Line	1	90 Ohms @ 100 MHz	2.3A	38mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MPZ1005S221HT000 CHIP BEADS FOR POWER LINE, LARGE TDK Corporation	12,450	0.12	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MPZ-H	Active	Power Line	1	220 Ohms @ 100 MHz	1.5A	95mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MMZ0603S601HT000 FERRITE BEAD 600 OHM 0201 1LN TDK Corporation	13,287	0.13	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-H	Active	Signal Line	1	600 Ohms @ 100 MHz	280mA	750mOhm	-	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.024 L x 0.012 W (0.60mm x 0.30mm)
MPZ0603S800HT000 CHIP BEADS FOR GENERAL SIGNAL LI TDK Corporation	12,511	0.14	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MPZ-H	Active	Power Line	1	80 Ohms @ 100 MHz	1.2A	95mOhm	-	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.024 L x 0.012 W (0.60mm x 0.30mm)

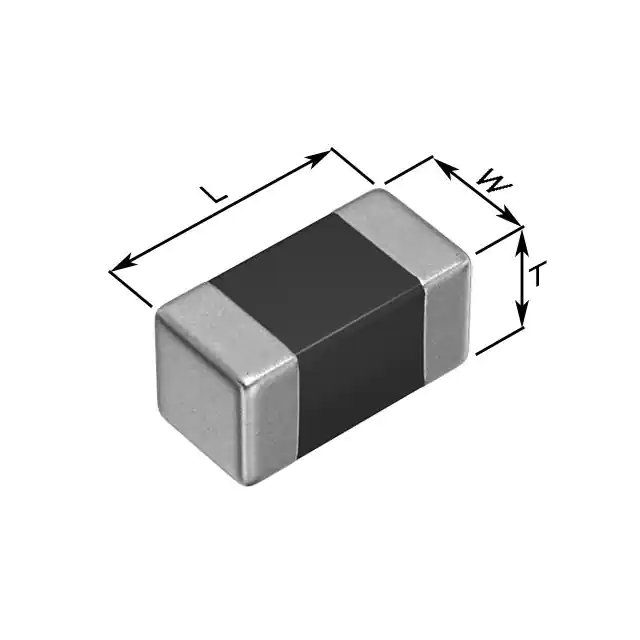

MMZ0603S800CTD25 CHIP BEADS FOR AUTOMOTIVE, FOR G TDK Corporation	11,100	0.15	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MMZ	Active	Signal Line	1	80 Ohms @ 100 MHz	200mA	300mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.024 L x 0.012 W (0.60mm x 0.30mm)

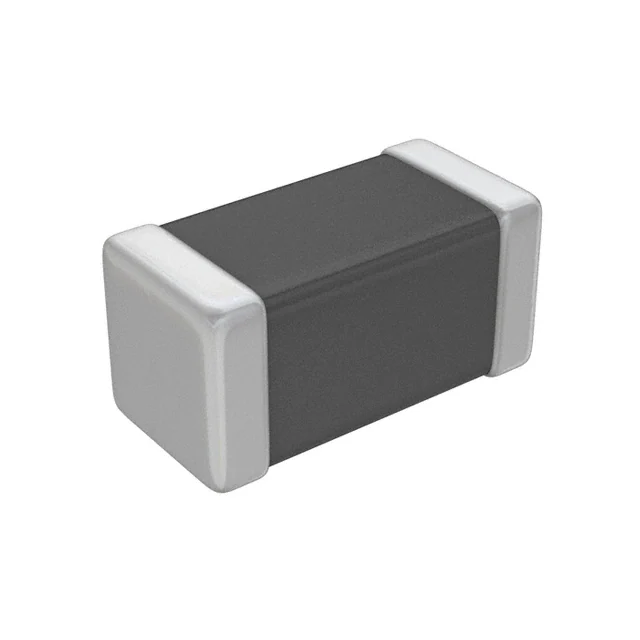

MPZ0603S220CT000 FERRITE BEAD 22 OHM 0201 1LN TDK Corporation	14,855	0.17	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MPZ	Active	Power Line	1	22 Ohms @ 100 MHz	1A	65mOhm	-	-55°C ~ 125°C	Surface Mount	0.013 (0.33mm)	0.024 L x 0.012 W (0.60mm x 0.30mm)
MMZ1005F121ET000 FERRITE BEAD 120 OHM 0402 1LN TDK Corporation	12,059	0.20	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-E	Active	Signal Line	1	120 Ohms @ 100 MHz	200mA	1.5Ohm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MMZ1005S182ETD25 FERRITE BEAD 1.8 KOHM 0402 1LN TDK Corporation	12,384	0.19	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-E	Active	Signal Line	1	1.8 kOhms @ 100 MHz	200mA	1.5Ohm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
MMZ1005A182ETD25 FERRITE BEAD 1.8 KOHM 0402 1LN TDK Corporation	11,280	0.19	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MMZ-E	Active	Signal Line	1	1.8 kOhms @ 100 MHz	200mA	2.1Ohm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)

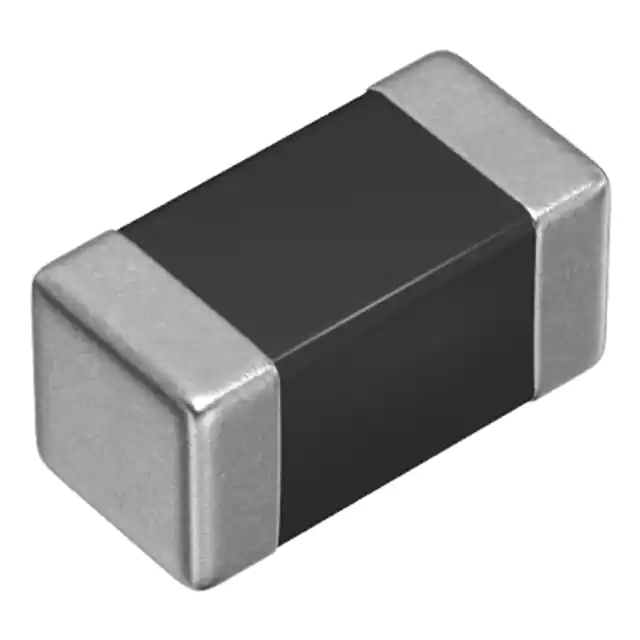

MHF1608BAC601ATD25 EMC SUPPRESSION FILTER FOR SIGNA TDK Corporation	13,129	0.21	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MHF	Active	-	1	1.2 kOhms @ 100 MHz	350mA	600mOhm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.031 W (1.60mm x 0.80mm)
MHF1608BAC252ATD25 EMC SUPPRESSION FILTER FOR SIGNA TDK Corporation	10,922	0.21	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MHF	Active	-	1	1.8 kOhms @ 100 MHz	200mA	1.6Ohm	AEC-Q200	-55°C ~ 125°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.031 W (1.60mm x 0.80mm)
MPZ1005A331ETD25 CHIP BEADS FOR POWER LINE, FOR A TDK Corporation	11,468	0.22	- + FFQ		Tape & Reel (TR),Cut Tape (CT)	MPZ-E	Active	Power Line	1	330 Ohms @ 100 MHz	600mA	300mOhm	-	-55°C ~ 125°C	Surface Mount	0.022 (0.55mm)	0.039 L x 0.020 W (1.00mm x 0.50mm)
