Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	LogicType	NumberofCircuits	NumberofInputs	Features	Voltage-Supply	Current-Quiescent(Max)	Current-OutputHighLow	LogicLevel-Low	LogicLevel-High	MaxPropagationDelay@VMaxCL	OperatingTemperature	MountingType
74LVC132ABQ,115 IC GATE NAND 4CH 2-INP 14DHVQFN Nexperia USA Inc.	12,966	0.68	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVC	Active	NAND Gate	4	2	Schmitt Trigger	1.2V ~ 3.6V	40 µA	24mA, 24mA	0.12V ~ 0.8V	1V ~ 2V	6.4ns @ 3.3V, 50pF	-40°C ~ 125°C	Surface Mount
74AUP1G86GS,132 IC GATE XOR 1CH 2-INP 6XSON Nexperia USA Inc.	11,016	0.69	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AUP	Active	XOR (Exclusive OR)	1	2	-	0.8V ~ 3.6V	500 nA	4mA, 4mA	0.7V ~ 0.9V	1.6V ~ 2V	7.1ns @ 3.3V, 30pF	-40°C ~ 125°C	Surface Mount
74HC3GU04DP,125 IC INVERTER 3CH 3-INP 8TSSOP Nexperia USA Inc.	14,157	0.69	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74HC	Active	Inverter	3	3	-	2V ~ 6V	20 µA	5.2mA, 5.2mA	0.5V ~ 1.8V	1.5V ~ 4.2V	5ns @ 6V, 50pF	-40°C ~ 125°C	Surface Mount
74AHC3GU04DP,125 IC INVERTER 3CH 3-INP 8TSSOP Nexperia USA Inc.	11,222	0.69	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AHC	Active	Inverter	3	3	-	2V ~ 5.5V	1 µA	8mA, 8mA	0.3V ~ 1.1V	1.7V ~ 4.4V	7ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74LVC1G332GXZ IC GATE OR 1CH 3-INP 6X2SON Nexperia USA Inc.	12,717	0.76	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVC	Active	OR Gate	1	3	-	1.65V ~ 5.5V	4 µA	32mA, 32mA	0.7V ~ 0.8V	1.7V ~ 2V	3.5ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74AUP2GU04GW,125 IC INVERTER 2CH 2-INP 6TSSOP Nexperia USA Inc.	14,244	0.91	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AUP	Active	Inverter	2	2	-	0.8V ~ 3.6V	500 nA	4mA, 4mA	-	-	4.3ns @ 3.3V, 30pF	-40°C ~ 125°C	Surface Mount
74AUP2G32GT,115 IC GATE OR 2CH 2-INP 8XSON Nexperia USA Inc.	10,006	0.91	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AUP	Active	OR Gate	2	2	-	0.8V ~ 3.6V	500 nA	4mA, 4mA	0.7V ~ 0.9V	1.6V ~ 2V	6.4ns @ 3.3V, 30pF	-40°C ~ 125°C	Surface Mount
74ABT32PW,118 IC GATE OR 4CH 2-INP 14TSSOP Nexperia USA Inc.	8,998	1.07	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74ABT	Active	OR Gate	4	2	-	4.5V ~ 5.5V	50 µA	15mA, 20mA	0.8V	2V	3.4ns @ 5V, 50pF	-40°C ~ 85°C	Surface Mount
74ABT32PW,112 IC GATE OR 4CH 2-INP 14TSSOP Nexperia USA Inc.	2,277	0.00	- + FFQ	Datasheet	Tube	74ABT	Obsolete	OR Gate	4	2	-	4.5V ~ 5.5V	50 µA	15mA, 20mA	0.8V	2V	3.4ns @ 5V, 50pF	-40°C ~ 85°C	Surface Mount
74HCT9114D,118 IC INVERT SCHMITT 9CH 9-INP 20SO Nexperia USA Inc.	7,275	1.98	- + FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74HCT	Active	Inverter	9	1	Schmitt Trigger, Open Drain	4.5V ~ 5.5V	8 µA	-, 4mA	0.7V ~ 0.8V	2V	17ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74HCT9114D,112 IC INVERT SCHMITT 9CH 9-INP 20SO Nexperia USA Inc.	3,834	0.00	- + FFQ	Datasheet	Bulk	74HCT	Obsolete	Inverter	9	1	Schmitt Trigger, Open Drain	4.5V ~ 5.5V	8 µA	-, 4mA	0.7V ~ 0.8V	2V	17ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74AUP2G0604GWH NEXPERIA 74AUP2G0604GW - INVERTE Nexperia USA Inc.	10,188	0.06	- + FFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
74LVC1G11GXZ NEXPERIA 74LVC1G11 - SINGLE 3-IN Nexperia USA Inc.	14,505	0.06	- + FFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
74LVC1GU04GX,125 NEXPERIA 74LVC1GU04 - INVERTER Nexperia USA Inc.	928	103411.00	- + FFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-
74LVC1G32GF/S500,1 74LVC1G32GF - SINGLE 2-INPUT OR Nexperia USA Inc.	11,080	0.06	- + FFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
74AUP1G02GX,125 NEXPERIA 74AUP1G02GX - NOR GATE Nexperia USA Inc.	483	1615400.00	- + FFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-
74LVC1G86GX,125 NEXPERIA 74LVC1G86 - XOR GATE, L Nexperia USA Inc.	12,863	0.07	- + FFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
74LVC1G32GM,132 NEXPERIA 74LVC1G32GM - OR GATE Nexperia USA Inc.	780	239900.00	- + FFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-
74LVC1GU04GM,115 NEXPERIA 74LVC1GU04 - INVERTER Nexperia USA Inc.	527	225279.00	- + FFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-

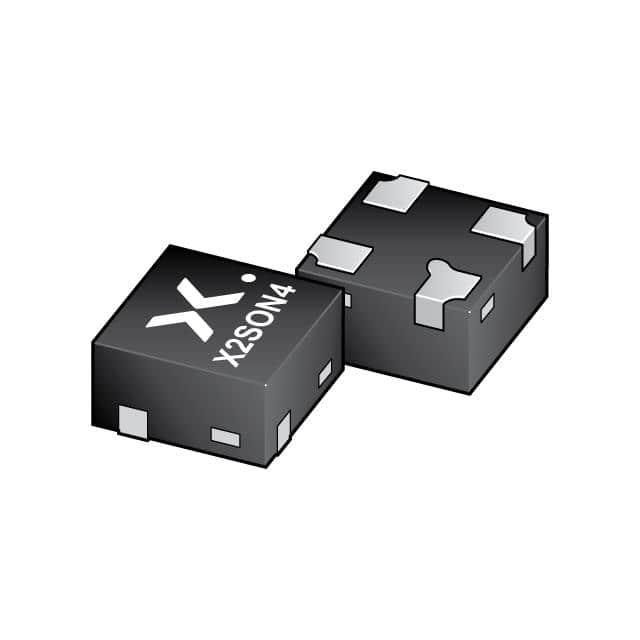

74AUP1G04GX4Z 74AUP1G04 - LOW-POWER INVERTER Nexperia USA Inc.	13,460	0.07	- + FFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
