Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	LogicType	NumberofCircuits	NumberofInputs	Features	Voltage-Supply	Current-Quiescent(Max)	Current-OutputHighLow	LogicLevel-Low	LogicLevel-High	MaxPropagationDelay@VMaxCL	OperatingTemperature	MountingType
CD4073BF CMOS TRIPLE 3-INPUT AND GATE Harris Corporation	4,530	10.20	- + FFQ	Datasheet	Bulk	-	Active	AND Gate	3	3	-	3V ~ 18V	5 µA	6.8mA, 6.8mA	1.5V ~ 4V	3.5V ~ 11V	90ns @ 15V, 50pF	-55°C ~ 125°C	Through Hole
CD4082BF3A CMOS DUAL 4-INPUT AND GATE Harris Corporation	4,095	10.24	- + FFQ	Datasheet	Bulk	-	Active	AND Gate	2	4	-	3V ~ 18V	5 µA	6.8mA, 6.8mA	1.5V ~ 4V	3.5V ~ 11V	90ns @ 15V, 50pF	-55°C ~ 125°C	Through Hole
CD4072BF3A OR LOGIC GATES Harris Corporation	4,711	14.27	- + FFQ	Datasheet	Tube	-	Active	OR Gate	2	4	-	3V ~ 18V	5 µA	6.8mA, 6.8mA	1.5V ~ 4V	3.5V ~ 11V	90ns @ 15V, 50pF	-55°C ~ 125°C	Through Hole
JM38510/65701BCA 54HC04 HEX INVERTERS Harris Corporation	4,045	18.10	- + FFQ	Datasheet	Bulk	-	Active	Inverter	6	1	-	2V ~ 6V	2 µA	5.2mA, 5.2mA	0.5V ~ 1.8V	1.5V ~ 4.2V	16ns @ 6V, 50pF	-55°C ~ 125°C	Through Hole
CD4011BK CMOS QUAD 2-INPUT NAND GATE Harris Corporation	1,454	18.52	- + FFQ	Datasheet	Bulk	-	Active	NAND Gate	4	2	-	3V ~ 18V	5 µA	6.8mA, 6.8mA	1.5V ~ 4V	3.5V ~ 11V	90ns @ 15V, 50pF	-55°C ~ 125°C	Surface Mount
CD40106BK3 IC INVERTER 6CH 1-INP 14CFP Harris Corporation	2,138	18.78	- + FFQ	Datasheet	Bulk	-	Active	Inverter	6	1	Schmitt Trigger	3V ~ 18V	20 µA	6.8mA, 6.8mA	0.9V ~ 4V	3.6V ~ 10.8V	120ns @ 15V, 50pF	-55°C ~ 125°C	Surface Mount

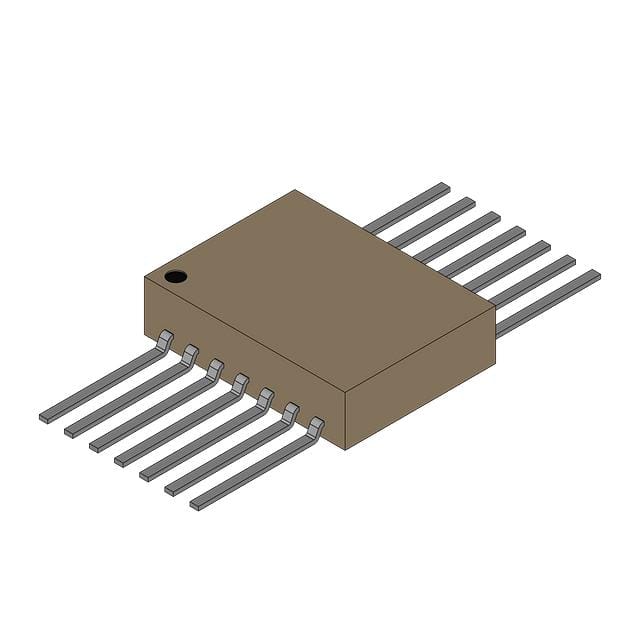

CD4000AK DUAL 3-INPUT NOR GATE & INVERTER Harris Corporation	1,168	19.38	- + FFQ	Datasheet	Bulk	-	Active	NOR Gate	2	3	-	3V ~ 12V	2 µA	-	-	-	65ns @ 10V, 15pF	-55°C ~ 125°C	Surface Mount
CD4023AK3 CMOS TRIPLE 3-INPUT NAND GATE Harris Corporation	3,111	19.92	- + FFQ	Datasheet	Bulk	-	Active	NAND Gate	3	3	-	3V ~ 12V	2 µA	-	-	-	40ns @ 10V, 15pF	-55°C ~ 125°C	Surface Mount
CD4081BK CMOS QUAD 2-INPUT AND GATE Harris Corporation	2,887	20.08	- + FFQ	Datasheet	Bulk	-	Active	AND Gate	4	2	-	3V ~ 18V	5 µA	6.8mA, 6.8mA	1.5V ~ 4V	3.5V ~ 11V	90ns @ 15V, 50pF	-55°C ~ 125°C	Surface Mount
CD4093BK CMOS QUAD 2-INPUT NAND GATE Harris Corporation	4,705	20.17	- + FFQ	Datasheet	Bulk	-	Active	NAND Gate	4	2	Schmitt Trigger	3V ~ 18V	20 µA	6.8mA, 6.8mA	2.8V ~ 9.6V	3.6V ~ 12.7V	130ns @ 15V, 50pF	-55°C ~ 125°C	Surface Mount
CD4077BK CMOS QUAD 2-INPUT XNOR GATE Harris Corporation	1,863	20.24	- + FFQ	Datasheet	Bulk	-	Active	XNOR (Exclusive NOR)	4	2	-	3V ~ 18V	5 µA	6.8mA, 6.8mA	1.5V ~ 4V	3.5V ~ 11V	100ns @ 15V, 50pF	-55°C ~ 125°C	Surface Mount
CD4044BK352352 CMOS QUAD NAND R/S LATCH(THREE S Harris Corporation	2,199	20.49	- + FFQ		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
RCD4001AK3 CD4001 - QUAD 2-INPUT NOR GATE Harris Corporation	1,697	23.41	- + FFQ		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
CD4001AK3 CMOS QUAD 2-INPUT NOR GATE Harris Corporation	2,504	35.08	- + FFQ	Datasheet	Bulk	-	Active	NOR Gate	4	2	-	3V ~ 12V	2 µA	-	-	-	65ns @ 10V, 15pF	-55°C ~ 125°C	Surface Mount
CD4000BK3 DUAL 3-INPUT NOR GATE & INVERTER Harris Corporation	2,822	37.59	- + FFQ	Datasheet	Bulk	-	Active	NOR Gate	2	3	-	3V ~ 18V	5 µA	3.4mA, 3.4mA	1.5V ~ 4V	3.5V ~ 11V	250ns @ 5V, 50pF	-55°C ~ 125°C	Surface Mount
JM38510/05353BCA CMOS LOGIC IC Harris Corporation	3,785	70.08	- + FFQ	Datasheet	Bulk	-	Active	XOR (Exclusive OR)	4	2	-	3V ~ 18V	5 µA	6.8mA, 6.8mA	1.5V ~ 4V	3.5V ~ 11V	100ns @ 15V, 50pF	-55°C ~ 125°C	Through Hole
100121A 100K SERIES, 9-FUNC, 1-INPUT Harris Corporation	4,639	72.00	- + FFQ	Datasheet	Bulk	-	Active	Inverter	9	1	-	4.2V ~ 5.7V	-	-	1.49V	0.88V	-	0°C ~ 85°C	Through Hole
CD74HCT11E IC GATE AND 3CH 3-INP 14DIP Harris Corporation	9,209	0.16	- + FFQ	Datasheet	Tube	74HCT	Obsolete	AND Gate	3	3	-	4.5V ~ 5.5V	2 µA	4mA, 4mA	0.8V	2V	28ns @ 4.5V, 50pF	-55°C ~ 125°C	Through Hole
CD74HCT86EX IC GATE XOR 4CH 2-INP 14DIP Harris Corporation	12,280	0.18	- + FFQ	Datasheet	Bulk	74HCT	Active	XOR (Exclusive OR)	4	2	-	4.5V ~ 5.5V	2 µA	4mA, 4mA	0.8V	2V	32ns @ 4.5V, 50pF	-55°C ~ 125°C	Through Hole
CD74HC32EX128 IC GATE OR 4CH 2-INP 14DIP Harris Corporation	11,851	0.18	- + FFQ		Bulk	74HC	Active	OR Gate	4	2	-	2V ~ 6V	2 µA	5.2mA, 5.2mA	0.5V ~ 1.8V	1.5V ~ 4.2V	15ns @ 6V, 50pF	-55°C ~ 125°C	Through Hole
