| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-4506-000EOPTOISO 3.75KV OPEN COLL 8DIP |
5,810 | 2.86 |
FFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.5V | 25mA | 4.5V ~ 30V | -40°C ~ 100°C | Through Hole |
|
HCPL-0601OPTOISO 3.75KV OPN COLLECTOR 8SO |
8,038 | 3.52 |
FFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
ACPL-P480-000EOPTOISO 3.75KV PUSH PULL 6SO |
6,785 | 4.15 |
FFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 350ns, 350ns | 16ns, 20ns | 1.7V | 10mA | 4.5V ~ 20V | -40°C ~ 100°C | Surface Mount |
|
ACPL-K75T-500EOPTOISO 5KV 2CH PUSH PULL 8SO |
6,388 | 8.49 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 2/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | - | - | 100ns, 100ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ACPL-P483-000EOPTOISO 3.75KV PUSH PULL 6SO |
6,584 | 4.25 |
FFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 30kV/µs | DC | Push-Pull, Totem Pole | 50 mA | - | 120ns, 120ns | 6ns, 6ns | 1.5V | 10mA | 4.5V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-P484-000EOPTOISO 3.75KV PUSH PULL 6SO |
8,756 | 4.25 |
FFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 30kV/µs | DC | Push-Pull, Totem Pole | 50 mA | - | 120ns, 150ns | 6ns, 6ns | 1.5V | 10mA | 4.5V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-W483-000EOPTOISO 5KV PUSH PULL 6SO |
9,028 | 4.25 |
FFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 30kV/µs | DC | Push-Pull, Totem Pole | 50 mA | - | 120ns, 120ns | 6ns, 6ns | 1.5V | 10mA | 4.5V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
HCPL-2212-300EOPTOISO 3.75KV PUSH PULL 8DIP GW |
8,874 | 4.36 |
FFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount |
|
ACPL-M46U-000EOPTOISO 3.75KV OPN COLLECTOR 5SO |
6,477 | 5.49 |
FFQ |
Datasheet |
Tube | R²Coupler™ | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 550ns | - | 1.5V | 20mA | 4.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
HCPL-0201OPTOISO 3.75KV PUSH PULL 8SO |
5,847 | 5.92 |
FFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount |
|
ACNV2601-300EOPTOISO 7.5KV OPEN COLL 10DIP GW |
9,803 | 7.43 |
FFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 7500Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 80ns, 80ns | 25ns, 10ns | 1.64V | 20mA | 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|

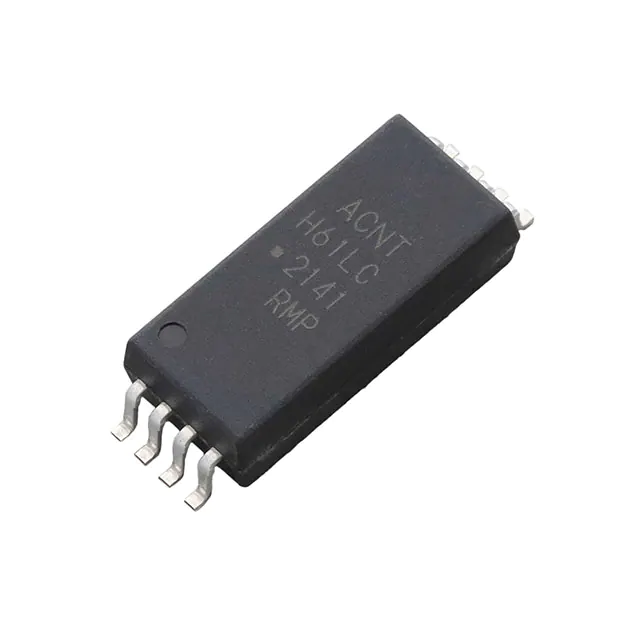

ACNT-H61LC-000E15MM CTI600V OPTOCOUPLER (10MBD) |
6,477 | 8.07 |
FFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 7500Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 10MBd | 100ns, 100ns | 10ns, 10ns | 1.38V | 10mA | 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-K75T-000EOPTOISO 5KV 2CH PUSH PULL 8SO |
7,974 | 8.42 |
FFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | - | - | 100ns, 100ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
HCPL-2231OPTOISO 3.75KV 2CH PSH PULL 8DIP |
1,711 | 12.51 |
FFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Through Hole |
|
|
HCPL-5430OPTOISO 1.5KV 2CH PUSH PULL 8DIP |
740 | 124.87 |
FFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 1500VDC | 500V/µs | DC | Push-Pull, Totem Pole | 25 mA | 40Mbps | 60ns, 60ns | 15ns, 10ns | 1.35V | 10mA | 4.75V ~ 5.25V | -55°C ~ 125°C | Through Hole |
|
HCPL-6650OPTOISO 1.5KV OPEN COLL 16FLATPK |
394 | 138.93 |
FFQ |
Datasheet |
Tube | - | Active | 4 | 4/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|
|
HCPL-6250OPTOISO 1.5KV PUSH PULL 16FLATPK |
852 | 181.32 |
FFQ |
Datasheet |
Tube | - | Active | 4 | 4/0 | 1500VDC | 1kV/µs | DC | Push-Pull, Totem Pole | 15 mA | 5MBd | 350ns, 350ns | 45ns, 10ns | 1.3V | 8mA | 4.5V ~ 20V | -55°C ~ 125°C | Surface Mount |
|
|
ACPL-P480-500EOPTOISO 3.75KV PUSH PULL 6SO |
7,356 | 3.41 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 350ns, 350ns | 16ns, 20ns | 1.7V | 10mA | 4.5V ~ 20V | -40°C ~ 100°C | Surface Mount |
|
|
ACPL-W60L-500EOPTOISO 5KV OPN COLL 6SO |
6,972 | 4.13 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
ACPL-M61U-500EOPTOISO 3.75KV OPN COLLECTOR 5SO |
9,191 | 6.64 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | R²Coupler™ | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
