| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-073LOPTOISO 3.75KV 2CH DARLNG 8-SO |
5,838 | 6.88 |
FFQ |
Datasheet |
Tube | - | Active | 2 | 3750Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 25µs, 50µs | - | DC | Darlington | 7V | 60mA | 1.5V | 20 mA | - | 0°C ~ 70°C | Surface Mount |
|
HCPL-814-500EOPTOISOLATOR 5KV TRANSISTOR 4SMD |
14,253 | 0.65 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 20% @ 1mA | 300% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
CNY17-2-500EOPTOISO 5KV TRANS W/BASE 6SMD |
14,375 | 0.69 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 63% @ 10mA | 125% @ 10mA | - | 5µs, 5µs | DC | Transistor with Base | 70V | 150mA | 1.4V | 60 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|

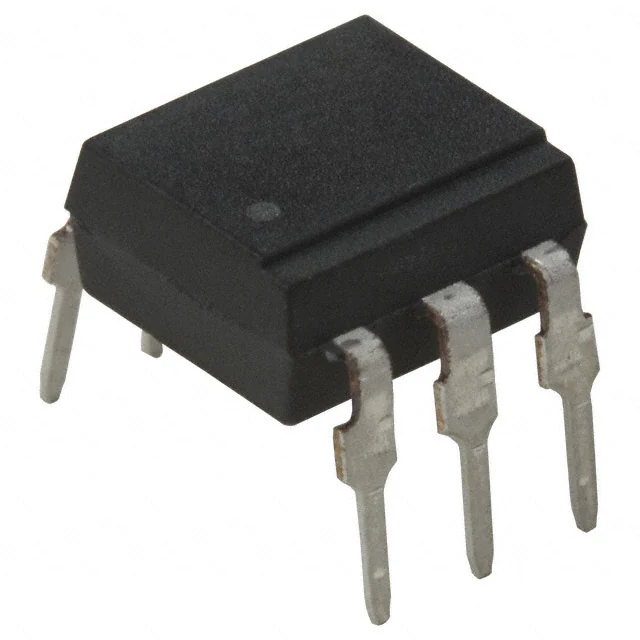

CNY17-1-000EOPTOISO 5KV TRANS W/BASE 6DIP |
13,449 | 0.70 |
FFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 40% @ 10mA | 80% @ 10mA | - | 5µs, 5µs | DC | Transistor with Base | 70V | 150mA | 1.4V | 60 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
HCPL-4504-560EOPTOISO 3.75KV TRANSISTOR 8DIPGW |
6,657 | 2.86 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 25% @ 16mA | 60% @ 16mA | 200ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
HCPL-4562-500EOPTOISO 3.75KV TRANS W/BASE 8SMD |
8,404 | 3.70 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | - | - | - | - | DC | Transistor with Base | 20V | 8mA | 1.3V | 12 mA | - | -40°C ~ 85°C | Surface Mount |
|
ACPL-M49T-560EOPTOISOLATOR 4KV TRANSISTOR |
9,800 | 3.41 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, R²Coupler™ | Active | 1 | 4000Vrms | 32% @ 10mA | 80% @ 10mA | 20µs, 20µs (Max) | - | DC | Transistor | 20V | 8mA | 1.5V | 20 mA | - | -40°C ~ 125°C | Surface Mount |
|
|
ACPL-M51L-000EOPTOISO 3.75KV TRANS |
9,342 | 2.69 |
FFQ |
Datasheet |
Bulk | - | Active | 1 | 3750Vrms | 80% @ 3mA | 200% @ 3mA | 300ns, 330ns | - | DC | Transistor | 24V | 8mA | 1.5V | 20 mA | - | -40°C ~ 105°C | Surface Mount |
|
ACPL-K73A-560EOPTOCOUPLER(100KBD),T/R+IEC+LF |
8,693 | 7.18 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 5000Vrms | 800% @ 40µA | 25000% @ 40µA | - | - | AC, DC | Darlington with Base | 18V | 60mA | 1.4V | 20 mA | - | -40°C ~ 105°C | Surface Mount |
|
ACPL-W454-000EOPTOISOLATOR 5KV TRANS 6SOIC |
8,485 | 3.45 |
FFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 25% @ 16mA | 60% @ 16mA | 200ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
HCPL-4701-000EOPTOISO 3.75KV DARLINGTON 8-DIP |
8,298 | 4.15 |
FFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 600% @ 500µA | 8000% @ 500µA | 3µs, 34µs | - | DC | Darlington with Base | 18V | 60mA | 1.25V | 10 mA | - | 0°C ~ 70°C | Through Hole |
.JPG)
|
ACNU-250L-000E11MM OPTOCOUPLER (1MBD) |
6,770 | 5.49 |
FFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 23% @ 12mA | 53% @ 12mA | 700ns, 400ns | - | DC | Transistor | 24V | 12mA | 1.5V | 20 mA | - | -40°C ~ 105°C | Surface Mount |
|
ACPL-K54L-000EOPTOISOLATOR 5KV 2CH TRANS 8-SO |
9,960 | 5.49 |
FFQ |
Datasheet |
Tube | - | Active | 2 | 5000Vrms | 93% @ 3mA | 200% @ 3mA | 200ns, 380ns | - | DC | Transistor | 24V | 8mA | 1.5V | 20 mA | - | -40°C ~ 105°C | Surface Mount |
|

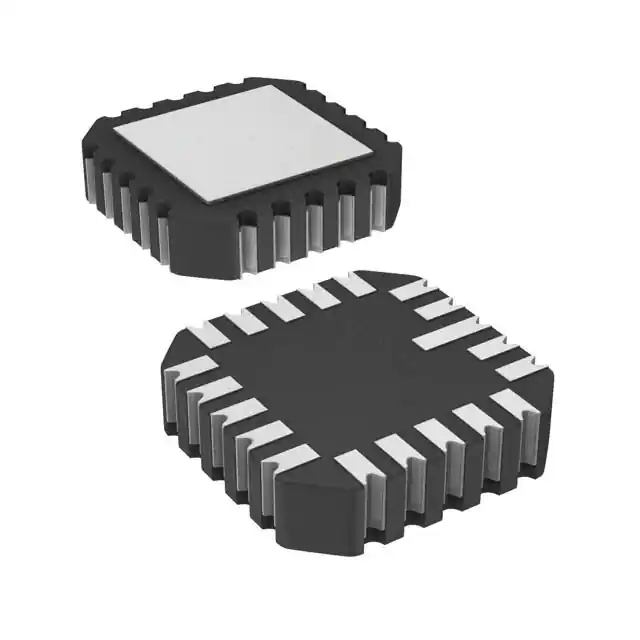

HCPL-6730OPTOISO 1.5KV 2CH DARLNG 20-LCCC |
4,585 | 98.12 |
FFQ |
Datasheet |
Tube | - | Active | 2 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Surface Mount |
|
|
5962-8978501PAOPTOISO 1.5KV 2CH DARLNG 8-DIP |
653 | 119.92 |
FFQ |
Datasheet |
Tube | - | Active | 2 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Through Hole |
|
HCPL-6550OPTOISO 1.5KV TRANS W/BASE 16DFF |
364 | 141.59 |
FFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 9% @ 16mA | - | 400ns, 1µs | - | DC | Transistor with Base | 20V | 8mA | 1.55V | 20 mA | - | -55°C ~ 125°C | Surface Mount |
|
|
HCPL-4502-500EOPTOISOLTR 3.75KV TRANS 8-DIP GW |
9,382 | 2.62 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
ACPL-844-000EOPTOISOLATOR 5KV 4CH TRANS 16DIP |
9,746 | 2.04 |
FFQ |
Datasheet |
Tube | - | Active | 4 | 5000Vrms | 20% @ 1mA | 300% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
ACPL-K44T-000EOPTOISOLATOR 5KV 2CH TRANSISTOR |
5,256 | 6.72 |
FFQ |
Datasheet |
Tube | Automotive, AEC-Q100, R²Coupler™ | Active | 2 | 5000Vrms | 32% @ 10mA | 100% @ 10mA | 150ns, 500ns | - | DC | Transistor | 20V | 8mA | 1.55V | 20 mA | - | -40°C ~ 125°C | Surface Mount |
|
|
HCPL-5531OPTOISO 1.5KV TRANS W/BASE 8DIP |
962 | 105.52 |
FFQ |
Datasheet |
Bulk | - | Active | 2 | 1500VDC | 9% @ 16mA | - | 400ns, 1µs | - | DC | Transistor with Base | 20V | 8mA | 1.55V | 20 mA | - | -55°C ~ 125°C | Through Hole |
