Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	DrivenConfiguration	ChannelType	NumberofDrivers	GateType	Voltage-Supply	LogicVoltage-VILVIH	Current-PeakOutput(SourceSink)	InputType	HighSideVoltage-Max(Bootstrap)	Rise/FallTime(Typ)	OperatingTemperature	MountingType

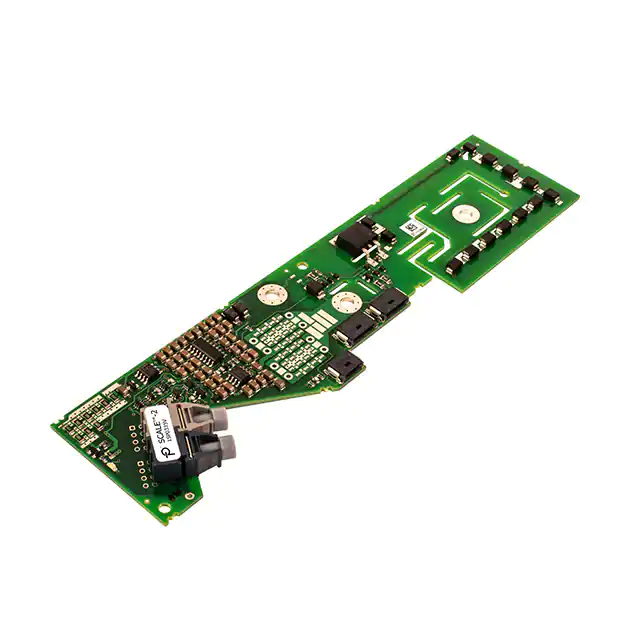

1SP0335V2M1-65 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	434	306.61	- + FFQ	Datasheet	Bulk	SCALE™-2	Active	High-Side or Low-Side	Single	1	IGBT	23.5V ~ 26.5V	-	35A, 35A	-	6500 V	9ns, 30ns	-40°C ~ 85°C (TA)	Surface Mount
1SP0635V2M1-33 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	433	347.11	- + FFQ	Datasheet	Bulk	SCALE™-2	Active	High-Side or Low-Side	Single	1	IGBT	14.5V ~ 15.5V	-	35A, 35A	-	3300 V	9ns, 30ns	-40°C ~ 85°C (TA)	Surface Mount
2SP0115T2C0-12 IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	565	105.00	- + FFQ	Datasheet	Tray	SCALE™-2	Active	Half-Bridge	Independent	2	IGBT	14.5V ~ 15.5V	-	8A, 15A	-	1200 V	5ns, 10ns	-40°C ~ 85°C (TA)	Surface Mount
2SC0435T2G1-17 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	525	105.69	- + FFQ	Datasheet	Tray	SCALE™-2	Active	High-Side or Low-Side	Independent	2	IGBT, N-Channel, P-Channel MOSFET	14.5V ~ 15.5V	-	35A, 35A	-	1700 V	20ns, 20ns	-40°C ~ 85°C (TA)	Surface Mount
1SP0335D2S1-65 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	630	138.84	- + FFQ	Datasheet	Bulk	SCALE™-2	Active	High-Side or Low-Side	Single	1	IGBT	23.5V ~ 26.5V	-	35A, 35A	-	6500 V	9ns, 30ns	-40°C ~ 85°C (TA)	Surface Mount

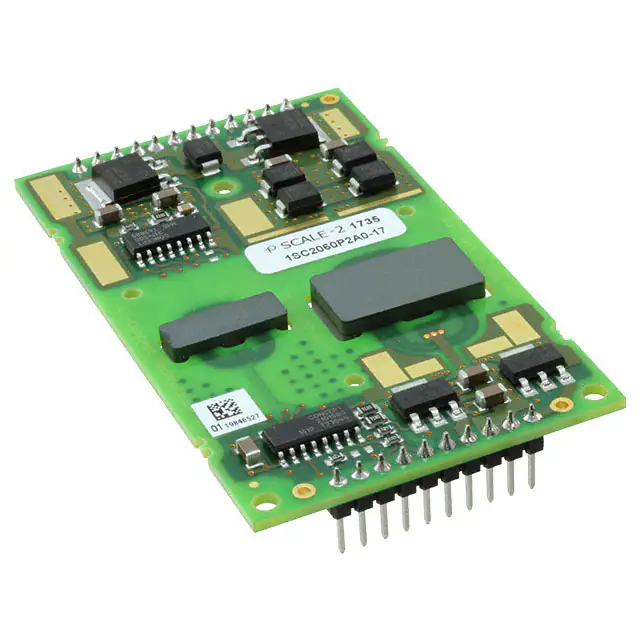

1SC2060P2A0-17 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	576	162.05	- + FFQ	Datasheet	Bulk	SCALE™-2	Active	High-Side or Low-Side	Single	1	IGBT, N-Channel, P-Channel MOSFET	14.5V ~ 15.5V	-	60A, 60A	-	-	10ns, 15ns	-40°C ~ 85°C (TA)	Surface Mount
1SC0450E2B0-45 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	690	163.17	- + FFQ		Tray	SCALE™-2	Active	High-Side or Low-Side	Single	1	IGBT	14.5V ~ 15.5V	-	50A, 50A	-	4500 V	30ns, 25ns	-40°C ~ 85°C (TA)	Surface Mount
1SP0335V2M1-45 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	723	306.61	- + FFQ	Datasheet	Bulk	SCALE™-2	Active	High-Side or Low-Side	Single	1	IGBT	23.5V ~ 26.5V	-	35A, 35A	-	4500 V	9ns, 30ns	-40°C ~ 85°C (TA)	Surface Mount
2SP0320T2C0-17 IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	544	193.16	- + FFQ	Datasheet	Tray	SCALE™-2	Active	Half-Bridge	Independent	2	IGBT	14.5V ~ 15.5V	-	20A, 20A	-	1700 V	7ns, 25ns	-40°C ~ 85°C (TA)	Surface Mount

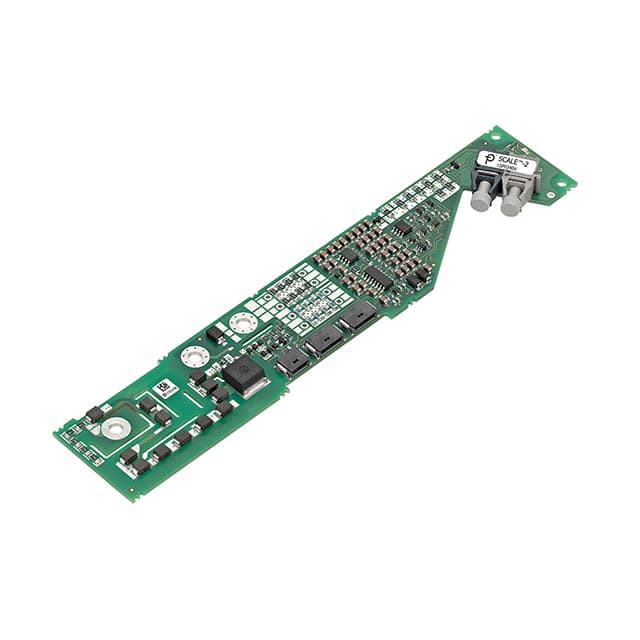

1SP0340V2M0-45 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	953	231.40	- + FFQ	Datasheet	Bulk	SCALE™-2	Active	High-Side or Low-Side	Single	1	IGBT	23.5V ~ 26.5V	-	35A, 35A	-	4500 V	10ns, 25ns	-40°C ~ 85°C (TA)	Surface Mount

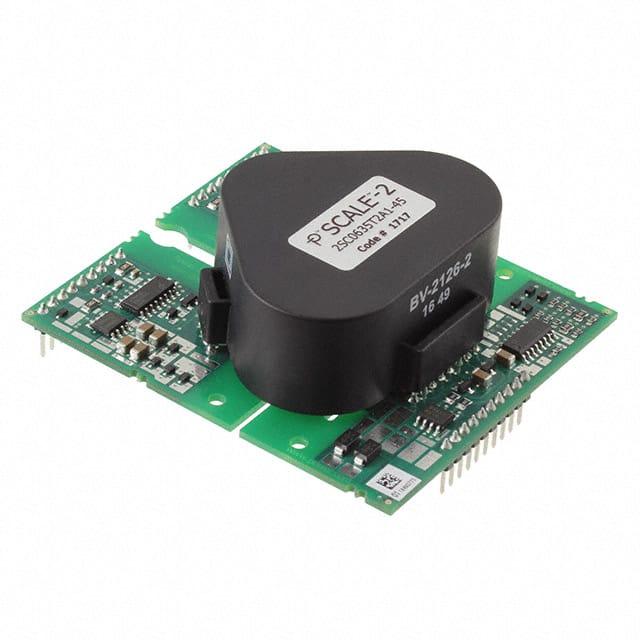

2SC0635T2A1-45 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	732	233.36	- + FFQ	Datasheet	Bulk	SCALE™-2	Active	High-Side or Low-Side	Independent	2	IGBT	14.5V ~ 15.5V	-	35A, 35A	-	4500 V	20ns, 25ns	-40°C ~ 85°C (TA)	Surface Mount
2SD300C17A2 IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	691	123.16	- + FFQ	Datasheet	Tray	SCALE™-2	Active	Half-Bridge	-	2	IGBT	14V ~ 16V	-	30A, 30A	-	-	-	-40°C ~ 85°C (TA)	Surface Mount

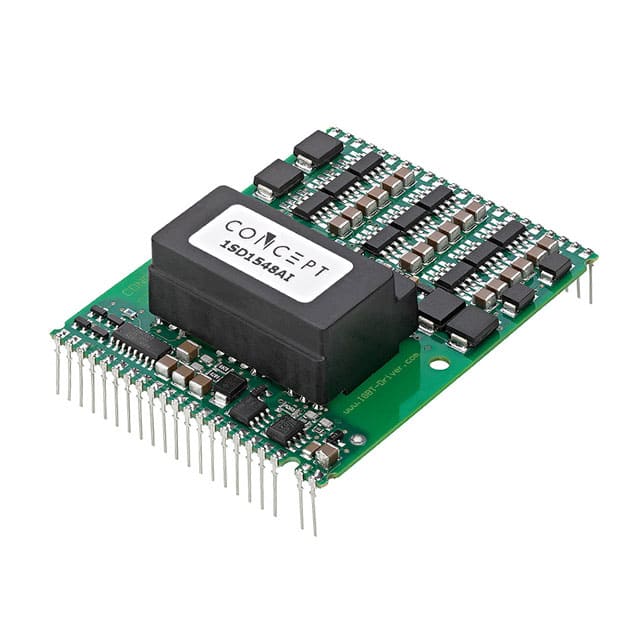

1SD1548AI UL IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	620	131.25	- + FFQ	Datasheet	Bulk	SCALE™-1	Active	Half-Bridge	-	1	IGBT, N-Channel, P-Channel MOSFET	15V	-	48A, 48A	-	-	-	-40°C ~ 85°C (TA)	Through Hole
1SP0335D2S1-45 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	725	138.84	- + FFQ	Datasheet	Bulk	SCALE™-2	Active	High-Side or Low-Side	Single	1	IGBT	23.5V ~ 26.5V	-	35A, 35A	-	4500 V	9ns, 30ns	-40°C ~ 85°C (TA)	Surface Mount

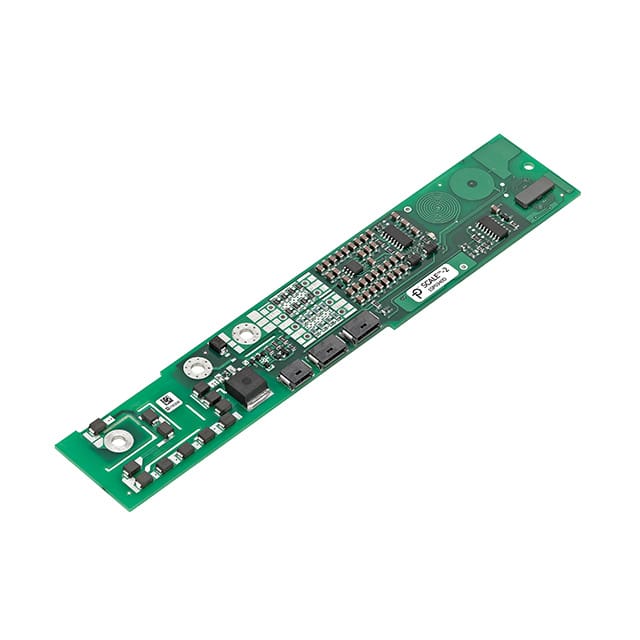

1SP0340D2S0-45 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	767	138.84	- + FFQ	Datasheet	Bulk	SCALE™-2	Active	High-Side or Low-Side	Single	1	IGBT	23.5V ~ 26.5V	-	35A, 35A	-	4500 V	10ns, 25ns	-40°C ~ 85°C (TA)	Surface Mount
1SP0635D2S1-12 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	660	150.42	- + FFQ	Datasheet	Bulk	SCALE™-2	Active	High-Side or Low-Side	Single	1	IGBT	14.5V ~ 15.5V	-	35A, 35A	-	1200 V	9ns, 30ns	-40°C ~ 85°C (TA)	Surface Mount

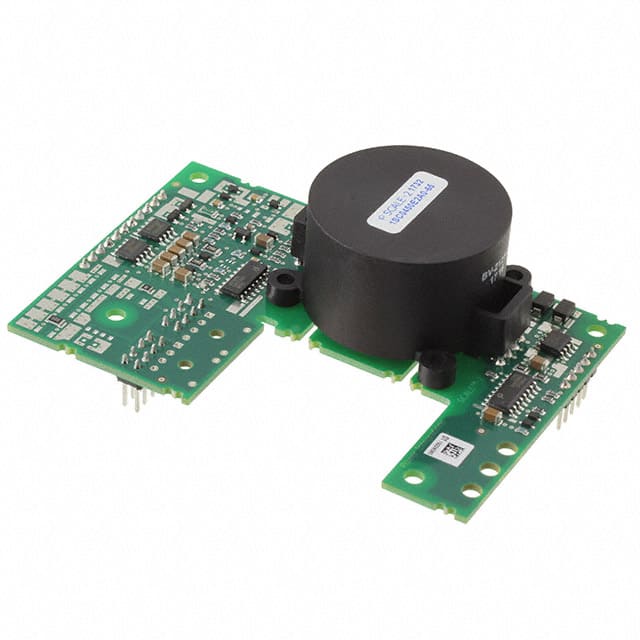

1SC0450E2A0-65 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	698	172.31	- + FFQ	Datasheet	Tray	SCALE™-2	Active	High-Side or Low-Side	Single	1	IGBT	14.5V ~ 15.5V	-	50A, 50A	-	6500 V	30ns, 25ns	-40°C ~ 85°C (TA)	Surface Mount
2SP0320T2B0-12 IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	511	193.16	- + FFQ	Datasheet	Tray	SCALE™-2	Active	Half-Bridge	Independent	2	IGBT	14.5V ~ 15.5V	-	20A, 20A	-	1200 V	7ns, 25ns	-40°C ~ 85°C (TA)	Surface Mount
1SP0340V2M0-MG900GXH1US53 IGBT DRIVER 180MA SCALE-2 MASTER Power Integrations	863	202.21	- + FFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
1SP0335V2M1-FZ500R65KE3 IGBT GATE DRIVER P/P 1CH SCALE-2 Power Integrations	384	202.21	- + FFQ		Tray	SCALE™-2	Active	High-Side or Low-Side	Single	1	IGBT	23.5V ~ 26.5V	-	35A, 35A	-	6500 V	9ns, 30ns	-40°C ~ 85°C	Chassis Mount
