| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DIP12-1C90-51LRELAY REED SPDT 500MA 12V |
8,728 | 8.87 |
FFQ |
Datasheet |
Tube | DIP | Active | Through Hole | 12VDC | SPDT (1 Form C) | 500 mA | 175VAC, 175VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C |
|
DIP24-1C90-51LRELAY REED SPDT 500MA 24V |
6,217 | 9.62 |
FFQ |
Datasheet |
Tube | DIP | Active | Through Hole | 24VDC | SPDT (1 Form C) | 500 mA | 175VAC, 175VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C |
|
DIP05-1C90-51DRELAY REED SPDT 250MA 5V |
1,249 | 14.34 |
FFQ |
Datasheet |
Tube | DIP | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VAC, 175VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C |
|
NP05-1C90-500-250RELAY REED SPDT 250MA 5V |
3,281 | 11.74 |
FFQ |
Datasheet |
Tube | NP | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VAC, 175VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C |
|
CRR05-1ARELAY REED SPST 500MA 5V |
9,820 | 7.79 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CRR | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VAC, 170VDC - Max | 33.3 mA | Non Latching | - | SMD (SMT) Tab | - | 3.75 VDC | 0.75 VDC | 0.6 ms | 0.05 ms | -40°C ~ 125°C |
|

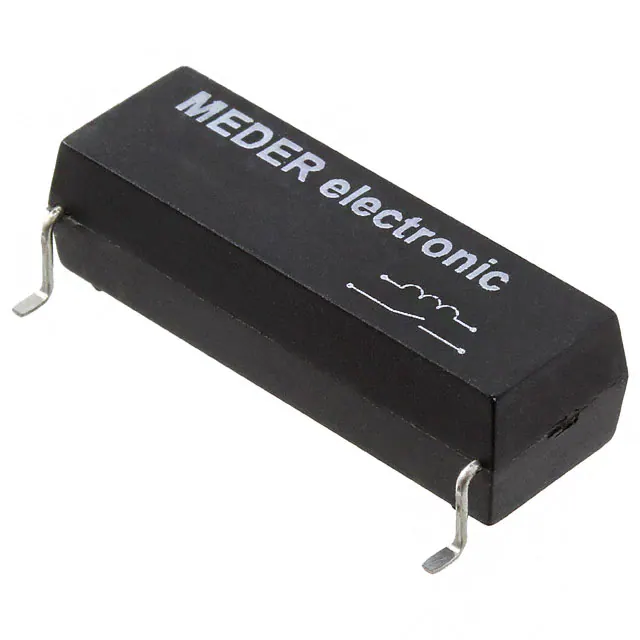

KT05-1A-40L-SMDREED RELAY 1 FORM A 5V SMD |
3,444 | 11.74 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | KT | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 63 mA | Non Latching | - | Gull Wing | Sealed - Fully | 3.5 VDC | 0.5 VDC | - | - | -40°C ~ 100°C |
|
SHV05-1A85-78L3KRELAY REED SPST 1A 5V |
6,366 | 9.47 |
FFQ |
Datasheet |
Tube | SHV | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 27.8 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.1 ms | 0.1 ms | -40°C ~ 100°C |
|
|
SHV05-1A85-78D3KRELAY REED SPST 1A 5V |
5,297 | 9.60 |
FFQ |
Datasheet |
Tube | SHV | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 27.8 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.1 ms | 0.1 ms | -40°C ~ 100°C |
|
|
SHV12-1A85-78D3KRELAY REED SPST 1A 12V |
2,111 | 11.29 |
FFQ |
Datasheet |
Tube | SHV | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 8.4 VDC | 1.8 VDC | 1.1 ms | 0.1 ms | -40°C ~ 100°C |
|
|
SHV12-1A85-78L3KRELAY REED SPST 1A 12V |
3,225 | 11.84 |
FFQ |
Datasheet |
Tube | SHV | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 1.1 ms | 0.1 ms | -40°C ~ 100°C |
|
|
SHV12-1A85-78D4KRELAY REED SPST 1A 12V |
3,058 | 12.54 |
FFQ |
Datasheet |
Tube | SHV | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 8.4 VDC | 1.8 VDC | 1.1 ms | 0.1 ms | -40°C ~ 100°C |
|
MS05-1A71-75LHRRELAY REED SPST 500MA 5V |
2,978 | 0.00 |
FFQ |
Datasheet |
Tube | MS | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 65°C |
|
SIL05-1A31-71MRELAY REED SPST 2A 5V |
12,481 | 0.00 |
FFQ |
Datasheet |
Tube | SIL | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 500VAC, 500VDC - Max | 62 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 1.2 ms | 1 ms | -20°C ~ 70°C |
|
|
MS05-1A31-75LRELAY REED SPST 2A 5V |
2,977 | 0.00 |
FFQ |
Datasheet |
Tube | MS | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 1 ms | 0.7 ms | -20°C ~ 70°C |
|
LI05-1A85RELAY REED SPST 1A 5V |
1,971 | 13.55 |
FFQ |
Datasheet |
Tube | LI | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 1.1 ms | 0.1 ms | -20°C ~ 70°C |
|
|
LI12-1A85RELAY REED SPST 1A 12V |
1,568 | 14.58 |
FFQ |
Datasheet |
Tube | LI | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 17.5 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C |
|
BE05-2A85-PRELAY REED DPST 1A 5V |
1,743 | 22.09 |
FFQ |
Datasheet |
Bulk | BE | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 1 A | 1000VAC, 1000VDC - Max | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C |
|
|
MS05-1A87-75DHRRELAY REED SPST 500MA 5V |
6,060 | 6.78 |
FFQ |
Datasheet |
Tube | MS | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
|
SHV05-1A85-78L2KRELAY REED SPST 1A 5V |
4,653 | 10.74 |
FFQ |
Datasheet |
Tube | SHV | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 22 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.1 ms | 0.1 ms | -40°C ~ 105°C |
|

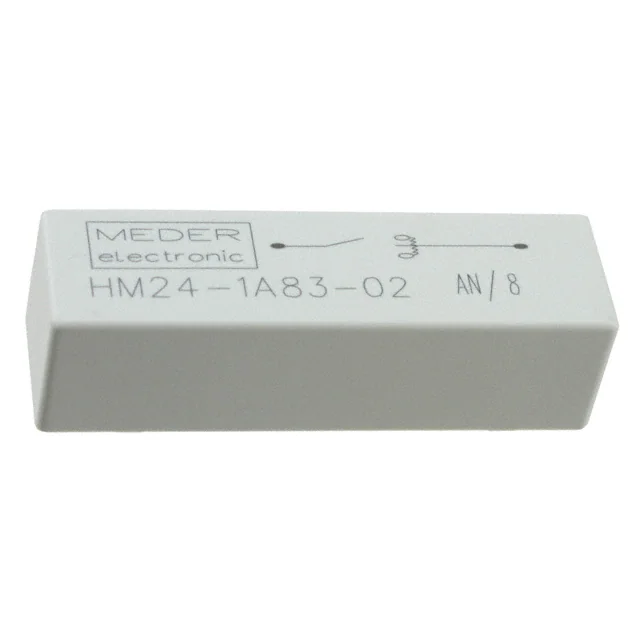

HM24-1A83-02RELAY REED SPST 3A 24V |
4,127 | 68.53 |
FFQ |
Datasheet |
Bulk | HM | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C |
