| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3572-1220-124RELAY REED DIP DPST .5A 12V W/DI |
7,504 | 3.30 |
FFQ |
Datasheet |
Tube | 3572 | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 150VDC - Max | 24 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
3570-1411-122RELAY REED SIP SPST .5A 12V W/EM |
6,531 | 3.49 |
FFQ |
Datasheet |
Tube | 3570 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C |
|

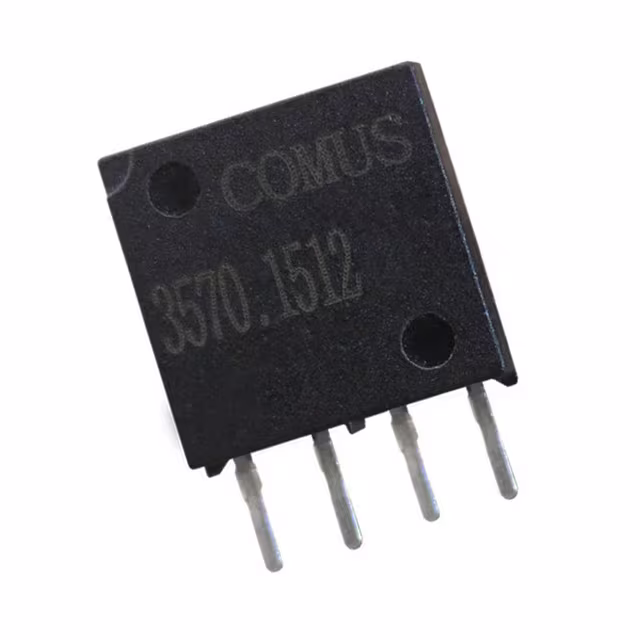

3570-1512-121RELAY REED SIP SPST .5A 12V |
6,557 | 4.39 |
FFQ |
Datasheet |
Tube | 3570 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 16 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C |
|

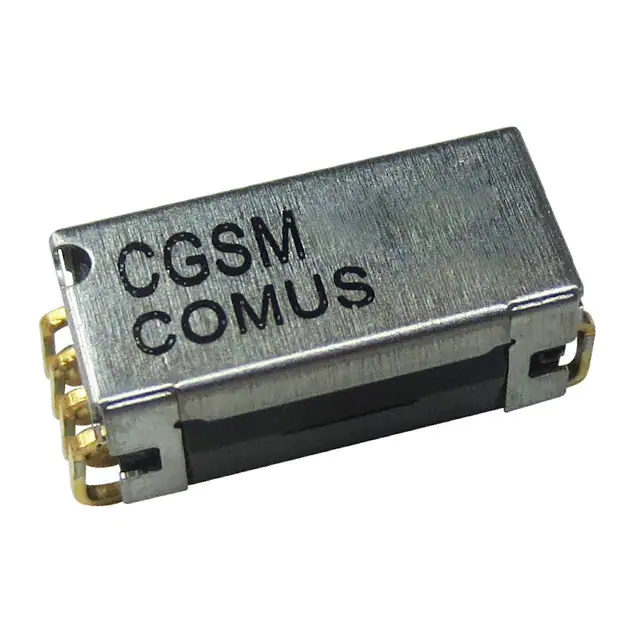

CGSM-051A-JTRRELAY RF SPST-NO 500MA 5V |
5,096 | 6.05 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CGSM | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 120VAC, 170VDC - Max | 33.3 mA | Non Latching | - | J Lead | - | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -40°C ~ 85°C |
|
|
CGSM-031A-JTRRELAY RF SPST-NO 500MA 3.3V |
5,810 | 6.05 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CGSM | Active | Surface Mount | 3.3VDC | SPST-NO (1 Form A) | 500 mA | 120VAC, 170VDC - Max | 47.1 mA | Non Latching | - | J Lead | - | 2.5 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -40°C ~ 85°C |
|
3563-1231-122RELAY REED DIP SPDT .4A 12V W/ES |
6,390 | 6.69 |
FFQ |
Datasheet |
Tube | 3563 | Active | Through Hole | 12VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 24 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C |
|
BFS-1A-12RELAY REED SPST .5A 12V |
5,660 | 7.15 |
FFQ |
Datasheet |
Tube | BFS | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C |
|
|
BFS-1A-12ERELAY REED SPST .5A 12V |
9,128 | 7.76 |
FFQ |
Datasheet |
Tube | BFS | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 8 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C |
|

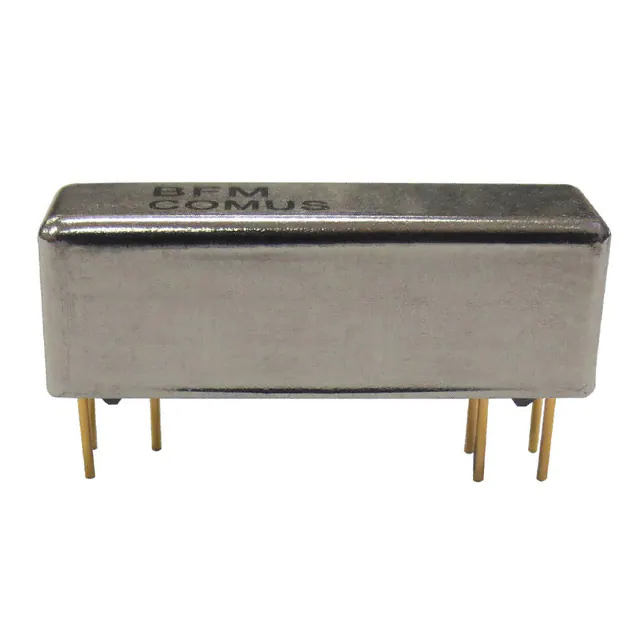

BFM-1A-12RELAY REED SPST .5A 12V |
8,662 | 7.83 |
FFQ |
Datasheet |
Tube | BFM | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C |
|
|
BFM-1A-12ERELAY REED SPST .5A 12V |
5,925 | 8.48 |
FFQ |
Datasheet |
Tube | BFM | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 8 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C |
|
|
BFS-1A-05CRELAY REED SPST .5A 5V |
8,642 | 8.85 |
FFQ |
Datasheet |
Tube | BFS | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 13.5 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C |
|
BFH-2A-05CRELAY REED DPST .5A 5V |
5,435 | 9.02 |
FFQ |
Datasheet |
Tube | BFH | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 28.6 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.15 ms | -20°C ~ 85°C |
|
|
BFM-1A-12CWRELAY REED SPST .5A 12V |
2,560 | 10.91 |
FFQ |
Datasheet |
Tube | BFM-CW | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 6.7 VDC | 1 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C |
|
|
BFM-1A-05CWRELAY REED SPST .5A 5V |
4,935 | 10.91 |
FFQ |
Datasheet |
Tube | BFM-CW | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 20.8 mA | Non Latching | - | PC Pin | - | 2.5 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C |
|
|
BFM-1C-12RELAY REED SPDT .25A 12V |
3,995 | 11.20 |
FFQ |
Datasheet |
Tube | BFM | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 2 ms | -25°C ~ 85°C |
|
|
BFM-1C-12ERELAY REED SPDT .25A 12V |
3,862 | 11.85 |
FFQ |
Datasheet |
Tube | BFM | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VDC - Max | 8 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 2 ms | -25°C ~ 85°C |
|
|
BFM-1C-05CRELAY REED SPDT .25A 5V |
4,429 | 12.34 |
FFQ |
Datasheet |
Tube | BFM | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 150VDC - Max | 21.7 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 1 ms | 2 ms | -25°C ~ 85°C |
|
|
BFM-1C-12CRELAY REED SPDT .25A 12V |
3,736 | 12.34 |
FFQ |
Datasheet |
Tube | BFM | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 2 ms | -25°C ~ 85°C |
|
|
BFM-1C-05CWRELAY REED SPDT .25A 5V |
1,760 | 14.77 |
FFQ |
Datasheet |
Tube | BFM-CW | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 150VDC - Max | 20.8 mA | Non Latching | - | PC Pin | - | 2.5 VDC | 0.4 VDC | 1 ms | 2 ms | -25°C ~ 85°C |
|
|
BFM-1C-12CWRELAY REED SPDT .25A 12V |
2,622 | 14.77 |
FFQ |
Datasheet |
Tube | BFM-CW | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 6.7 VDC | 1 VDC | 1 ms | 2 ms | -25°C ~ 85°C |
