| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

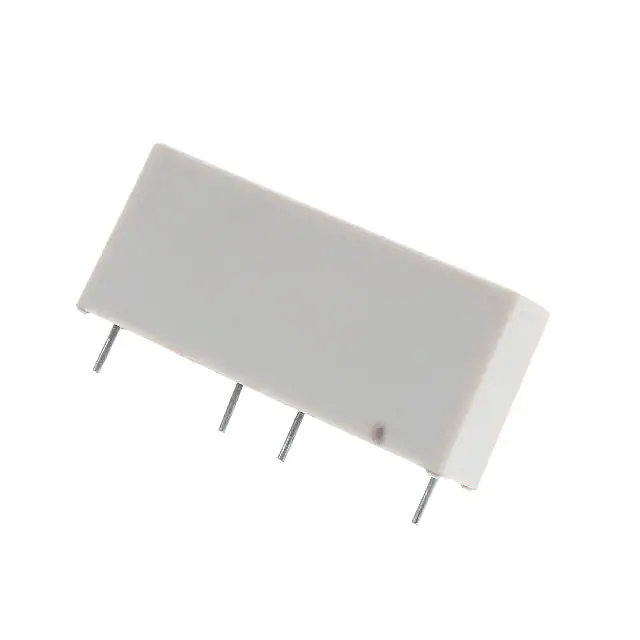

S1-24-BMRELAY REED 1 N/C 1.5KV 24V |
1,943 | 26.38 |
FFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2.4 VDC | - | - | -40°C ~ 85°C |
|
S1-12-BMRELAY REED 1 N/C 1.5KV 12V |
2,710 | 26.38 |
FFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 85°C |
|
|
S1-05-BDRELAY REED 1 N/C 1.5KV 5V |
2,720 | 26.38 |
FFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6.4 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 85°C |
|
|
S1-24-BDMRELAY REED 1 N/C 1.5KV 24V |
4,469 | 27.71 |
FFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 12 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 18 VDC | 2.4 VDC | - | - | -40°C ~ 85°C |
|
|
S1-12-BDMRELAY REED 1 N/C 1.5KV 12V |
1,189 | 27.71 |
FFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 85°C |
|
|
DBT72405URELAY REED SPST-NC 5KV 24V |
3,538 | 46.66 |
FFQ |
Datasheet |
Bulk | DB | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 3500VAC, 3500VDC - Max | 25.9 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
DBT72405-HRRELAY REED 5KV 24V SPST-NC |
1,121 | 46.66 |
FFQ |
Datasheet |
Bulk | D-HR | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 3500VAC, 3500VDC - Max | 25.9 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DAT70575-HRRELAY REED 7.5KV 5V SPST-NO |
1,995 | 46.89 |
FFQ |
Datasheet |
Bulk | D-HR | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAT70505PURELAY REED SPST-NO 5KV 5V |
1,611 | 47.41 |
FFQ |
Datasheet |
Bulk | DA | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 179 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAT72405FURELAY REED SPST-NO 5KV 24V |
1,070 | 47.41 |
FFQ |
Datasheet |
Bulk | DA | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 30.8 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DAR71210URELAY REED SPST-NO 3A 12V |
1,372 | 53.37 |
FFQ |
Datasheet |
Bulk | DA | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DBR70575URELAY REED SPST-NC 7.5KV 5V |
3,311 | 54.23 |
FFQ |
Datasheet |
Bulk | DB | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
DBR70510RELAY REED SPST-NC 3A 5V |
3,441 | 56.60 |
FFQ |
Datasheet |
Tray | DB | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
DAT70575FURELAY REED SPST-NO 7.5KV 5V |
2,273 | 57.58 |
FFQ |
Datasheet |
Bulk | DA | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 179 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DAR72410PRELAY REED SPST-NO 3A 24V |
4,044 | 57.62 |
FFQ |
Datasheet |
Tray | DA | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.7 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DAR72410FRELAY REED SPST-NO 3A 24V |
4,398 | 57.62 |
FFQ |
Datasheet |
Tray | DA | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.7 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DAT71210SRELAY REED SPST-NO 2A 12V |
2,977 | 60.09 |
FFQ |
Datasheet |
Bulk | DA | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAT71210PRELAY REED SPST-NO 2A 12V |
3,547 | 60.09 |
FFQ |
Datasheet |
Tray | DA | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Non Latching | - | Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAT70510SRELAY REED SPST-NO 2A 5V |
3,807 | 60.09 |
FFQ |
Datasheet |
Bulk | DA | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DAR71210F-HRRELAY REED SPST-NO 3A 12V |
3,394 | 66.25 |
FFQ |
Datasheet |
Tray | D-HR | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
