| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Technology | NumberofChannels | Voltage-Isolation | CommonModeTransientImmunity(Min) | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Current-OutputHighLow | Current-PeakOutput | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-OutputSupply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-314J-000EOPTOISO 5KV 2CH GATE DRIVER 16SO |
5,523 | 5.10 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 2 | 5000Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 500mA, - | 600mA | 1.5V | 25 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
ACPL-331J-000EOPTOISO 5KV 1CH GATE DRIVER 16SO |
5,173 | 6.26 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 1A, 1A | 1.5A | 1.6V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
HCPL-316J-000EOPTOISO 5KV 2CH GATE DRIVER 16SO |
8,209 | 6.58 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 2 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | - | - | 15V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
ACPL-337J-000EOPTOISO 5KV 1CH GATE DRIVER 16SO |
9,410 | 8.94 |
FFQ |
Datasheet |
Bulk | - | Active | Optical Coupling | 1 | 5000Vrms | 30kV/µs | 220ns, 250ns | 120ns | 80ns, 45ns | 3A, 3A | 4A | 1.55V | 20 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|

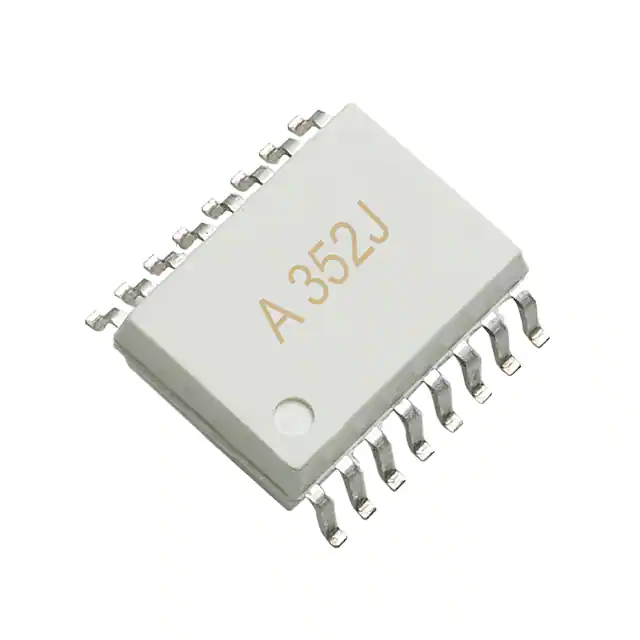

ACPL-352J-000EOPTOISO 5KV 1CH GATE DRIVER 16SO |
5,076 | 9.31 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 150ns, 150ns | 50ns | 37ns, 30ns | 4.5A, 4.5A | 5A | 1.55V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
HCPL-316JOPTOISO 5KV 2CH GATE DRIVER 16SO |
4,580 | 11.81 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 2 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | - | - | 15V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
ACPL-P340-500EOPTOISO 3.75KV 1CH GATE DRVR 6SO |
9,396 | 3.15 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 3750Vrms | 35kV/µs | 200ns, 200ns | 70ns | 43ns, 40ns | 800mA, 800mA | 1A | 1.55V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
HCPL-J312-500EOPTOISO 3.75KV GATE DRVR 8DIP GW |
6,821 | 3.94 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
HCNW3120-500EOPTOISO 5KV GATE DRIVER 8DIP GW |
8,096 | 4.54 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
HCPL-0302-000EOPTOISO 3.75KV 1CH GATE DRVR 8SO |
5,245 | 2.25 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 20 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
ACPL-330J-500EOPTOISO 5KV 1CH GATE DRIVER 16SO |
7,606 | 6.33 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 1A, 1A | 1.5A | 1.6V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
HCPL-316J-500EOPTOISO 5KV 2CH GATE DRIVER 16SO |
6,126 | 6.65 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | - | - | 15V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
ACPL-332J-500EOPTOISO 5KV 1CH GATE DRIVER 16SO |
7,265 | 6.65 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
.JPG)
|
ACNU-3430-500EOPTOISO 5KV 1CH GATE DRIVER 8SSO |
5,870 | 7.15 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 150ns, 150ns | 80ns | 20ns, 10ns | 4A, 4A | 5A | 1.45V | 25 mA | 15V ~ 30V | -40°C ~ 110°C | Surface Mount |
|
|
ACPL-P340-000EOPTOISO 3.75KV 1CH GATE DRVR 6SO |
8,489 | 3.84 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 3750Vrms | 35kV/µs | 200ns, 200ns | 70ns | 43ns, 40ns | 800mA, 800mA | 1A | 1.55V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
HCPL-J312-000EOPTOISO 3.75KV 1CH GATE DVR 8DIP |
7,408 | 3.87 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Through Hole |
|
ACPL-344JT-500EOPTOISO 5KV 1CH GATE DRIVER 16SO |
6,575 | 8.34 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, R²Coupler™ | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 250ns, 250ns | 100ns | 70ns, 50ns | 750mA, 1A | 2.5A | 1.55V | 20 mA | 15V ~ 25V | -40°C ~ 125°C | Surface Mount |
|
|
ACPL-352J-500EOPTOISO 5KV 1CH GATE DRVR 16SOIC |
6,188 | 9.39 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 150ns, 150ns | 50ns | 37ns, 30ns | 4.5A, 4.5A | 5A | 1.55V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
HCPL-3120OPTOISO 3.75KV 1CH GATE DVR 8DIP |
5,872 | 4.93 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Through Hole |
|
ACPL-K30T-000EOPTOISO 5KV 1CH GATE DRIVER 8SO |
9,809 | 5.19 |
FFQ |
Datasheet |
Tube | Automotive, AEC-Q100, R²Coupler™ | Active | Optical Coupling | 1 | 5000Vrms | - | 2ms, 0.12ms | - | - | - | - | 1.55V | 30 mA | - | -40°C ~ 125°C | Surface Mount |
