| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Technology | NumberofChannels | Voltage-Isolation | CommonModeTransientImmunity(Min) | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Current-OutputHighLow | Current-PeakOutput | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-OutputSupply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-J314-500EOPTOISO 3.75KV GATE DRVR 8DIP GW |
8,967 | 3.35 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 400mA, 400mA | 600mA | 1.5V | 25 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
ACPL-W341-560EOPTOISO 5KV 1CH GATE DRIVER 6SO |
7,576 | 3.24 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 200ns, 200ns | 70ns | 43ns, 40ns | 2.5A, 2.5A | 3A | 1.55V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-P343-560EOPTOISO 3.75KV 1CH GATE DRVR 6SO |
8,259 | 3.66 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 3750Vrms | 35kV/µs | 200ns, 200ns | 70ns | 43ns, 40ns | 3A, 3A | 4A | 1.55V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
ACPL-H312-500EOPTOISO 3.75KV 1CH GATE DRVR 8SO |
9,803 | 4.13 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 3750Vrms | 15kV/µs | 500ns, 500ns | 300ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
ACPL-K308U-500ESSR RELAY SPST-NO 50MA |
9,435 | 3.63 |
FFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | - | 140ns, 40ns | - | - | - | - | 1.4V | 20 mA | - | -40°C ~ 125°C | Surface Mount | |
|
|
ACPL-K30T-560EOPTOISO 5KV 1CH GATE DRIVER 8SO |
5,625 | 5.14 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, R²Coupler™ | Active | Optical Coupling | 1 | 5000Vrms | - | 2ms, 0.12ms | - | - | - | - | 1.55V | 30 mA | - | -40°C ~ 125°C | Surface Mount |
|
|
ACFL-3161-000EGATE DRIVE OPTOCOUPLER,IEC+LF |
8,175 | 3.87 |
FFQ |
Tube | - | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 95ns, 95ns | 25ns | 7ns, 7ns | 6A, 6A | 10A | 1.55V | 20 mA | 15V ~ 30V | -40°C ~ 125°C | Surface Mount | |
|

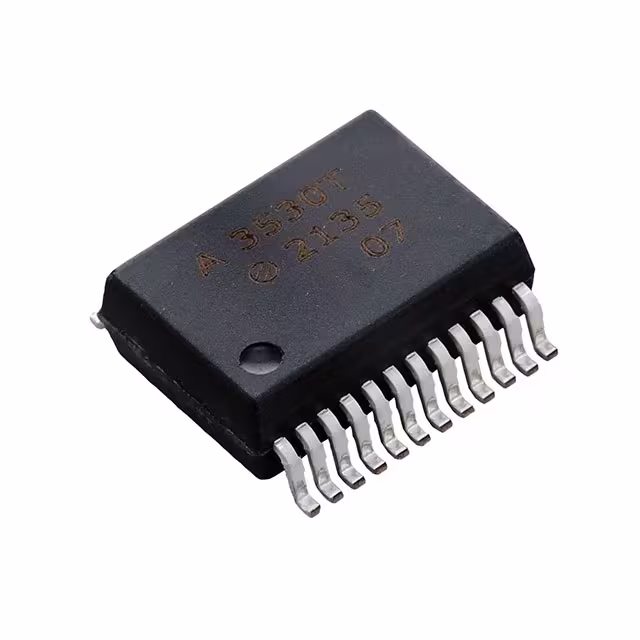

ACFJ-3530T-000EAUTOMOTIVE OPTOCOUPLER, LF |
9,300 | 7.28 |
FFQ |
Datasheet |
Tube | Automotive, AEC-Q100 | Active | Capacitive Coupling | 1 | 5000Vrms | 50kV/µs | 200ns, 200ns | 100ns | 15ns, 15ns | 1.5A, 1.5A | 2.5A | 1.55V | - | 15.2V ~ 16.8V | -40°C ~ 125°C | Surface Mount |
|
|
HCPL-3020-300EOPTOISO 3.75KV GATE DVR 8DIP GW |
11,554 | 0.88 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 20 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
HCPL-0302-060EOPTOISO 3.75KV 1CH GATE DRVR 8SO |
11,014 | 0.88 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 20 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL-3020-560EOPTOISO 3.75KV GATE DVR 8DIP GW |
10,409 | 0.89 |
FFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 20 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL-0302-560EOPTOISO 3.75KV 1CH GATE DRVR 8SO |
10,451 | 0.91 |
FFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 20 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL-3020-360EOPTOISO 3.75KV GATE DVR 8DIP GW |
12,530 | 0.91 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 20 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL-T251-500EOPTOISO 3.75KV GATE DRVR 8DIP GW |
13,900 | 0.93 |
FFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 1µs, 1µs | - | - | -, 100mA | 400mA | 1.6V | 20 mA | 15V ~ 30V | -20°C ~ 85°C | Surface Mount |
|
|
HCPL-0314-060EOPTOISO 3.75KV 1CH GATE DRVR 8SO |
10,607 | 0.94 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 400mA, 400mA | 600mA | 1.5V | 25 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL-T251-300EOPTOISO 3.75KV GATE DRVR 8DIP GW |
11,767 | 0.95 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 1µs, 1µs | - | - | -, 100mA | 400mA | 1.6V | 20 mA | 15V ~ 30V | -20°C ~ 85°C | Surface Mount |
|
|
HCPL-0314-560EOPTOISO 3.75KV 1CH GATE DRVR 8SO |
10,324 | 0.97 |
FFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 400mA, 400mA | 600mA | 1.5V | 25 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
ACPL-W302-000EOPTOISO 5KV 1CH GATE DRIVER 6SO |
7,672 | 1.05 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 25 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
HCPL-T250-000EOPTOISO 3.75KV 1CH GATE DVR 8DIP |
6,161 | 1.08 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 3750Vrms | 5kV/µs | 500ns, 500ns | - | - | 500mA, 500mA | 1.5A | 1.6V | 20 mA | 15V ~ 30V | -20°C ~ 85°C | Through Hole |
|
|
ACPL-W302-060EOPTOISO 5KV 1CH GATE DRIVER 6SO |
9,479 | 1.08 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 25 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
