| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Technology | NumberofChannels | Voltage-Isolation | CommonModeTransientImmunity(Min) | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Current-OutputHighLow | Current-PeakOutput | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-OutputSupply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACPL-330J-000EOPTOISO 5KV 1CH GATE DRIVER 16SO |
9,286 | 6.26 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 1A, 1A | 1.5A | 1.6V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-332J-000EOPTOISO 5KV 1CH GATE DRIVER 16SO |
6,722 | 6.79 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 2 | 5000Vrms | 15kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
.JPG)
|
ACNU-3430-000EOPTOISO 5KV 1CH GATE DRIVER 8SSO |
6,335 | 7.08 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 150ns, 150ns | 80ns | 20ns, 10ns | 4A, 4A | 5A | 1.45V | 25 mA | 15V ~ 30V | -40°C ~ 110°C | Surface Mount |
|
ACNW3190-300EOPTOISO 5KV 1CH GATE DRIVER 8SMD |
8,540 | 7.15 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 4A, 4A | 5A | 1.6V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
ACPL-302J-000EOPTOISO 5KV 1CH GATE DRIVER 16SO |
4,611 | 10.43 |
FFQ |
Datasheet |
Bulk | - | Active | Optical Coupling | 1 | 5000Vrms | 30kV/µs | 250ns, 250ns | 140ns | 70ns, 35ns | 750mA, 1A | 2.5A | 1.55V | 20 mA | 18V ~ 22V | -40°C ~ 105°C | Surface Mount |
|
|
HCPL-3020-500EOPTOISO 3.75KV GATE DRVR 8DIP GW |
9,908 | 2.33 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 20 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
HCPL-0314-500EOPTOISO 3.75KV 1CH GATE DRVR 8SO |
9,009 | 2.49 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 400mA, 400mA | 600mA | 1.5V | 25 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
ACPL-P341-500EOPTOISO 3.75KV 1CH GATE DRVR 6SO |
9,756 | 3.48 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 3750Vrms | 35kV/µs | 200ns, 200ns | 70ns | 43ns, 40ns | 2.5A, 2.5A | 3A | 1.55V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-W341-500EOPTOISO 5KV 1CH GATE DRIVER 6SO |
8,951 | 3.17 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 200ns, 200ns | 70ns | 43ns, 40ns | 2.5A, 2.5A | 3A | 1.55V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
ACPL-K342-500EOPTOISO 5KV 1CH GATE DRIVER 8SO |
6,361 | 3.94 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 350ns, 250ns | - | 22ns, 18ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-K342-560EOPTOISO 5KV 1CH GATE DRIVER 8SO |
9,035 | 4.01 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 350ns, 250ns | - | 22ns, 18ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-H342-560EOPTOISO 3.75KV 1CH GATE DRVR 8SO |
8,460 | 4.21 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 350ns, 250ns | - | 22ns, 18ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-P349-560EOPTOISO 3.75KV 1CH GATE DRVR 6SO |
9,764 | 5.02 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 3750Vrms | 50kV/µs | 110ns, 110ns | 40ns | 8ns, 8ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-W349-500EOPTOISO 5KV 1CH GATE DRIVER 6SO |
7,016 | 5.34 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 110ns, 110ns | 40ns | 8ns, 8ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
HCPL-T251-000EOPTOISO 3.75KV 1CH GATE DVR 8DIP |
7,655 | 2.45 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 1µs, 1µs | - | - | -, 100mA | 400mA | 1.6V | 20 mA | 15V ~ 30V | -20°C ~ 85°C | Through Hole |
|
|
ACPL-P343-000EOPTOISO 3.75KV 1CH GATE DRVR 6SO |
8,184 | 3.52 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 3750Vrms | 35kV/µs | 200ns, 200ns | 70ns | 43ns, 40ns | 3A, 3A | 4A | 1.55V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-P347-000EOPTOISO 3.75KV 1CH GATE DRVR 6SO |
8,620 | 3.52 |
FFQ |
Datasheet |
Bulk | - | Active | Optical Coupling | 1 | 3750Vrms | 50kV/µs | 110ns, 110ns | 40ns | 8ns, 8ns | 800mA, 800mA | 1A | 1.55V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-W343-060EOPTOISO 5KV 1CH GATE DRIVER 6SO |
9,051 | 3.87 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 200ns, 200ns | 70ns | 43ns, 40ns | 3A, 3A | 4A | 1.55V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|

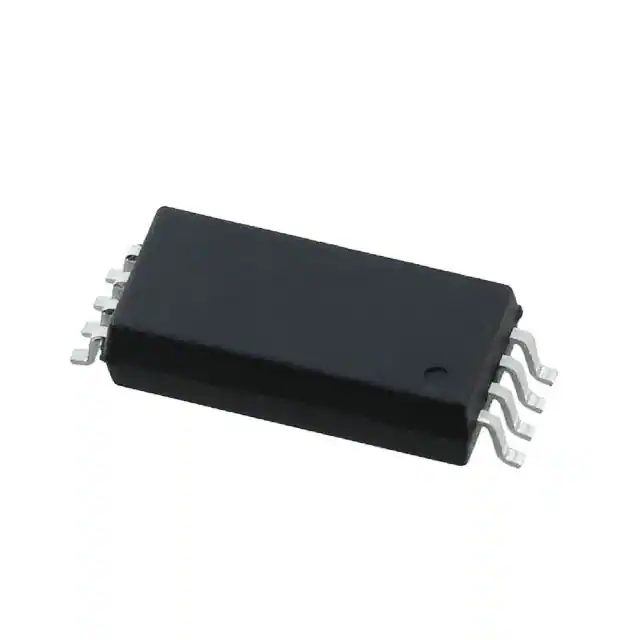

ACNT-H313-500EOPTOISO 7.5KV 1CH GATE DRVR 8SO |
6,103 | 7.82 |
FFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 7500Vrms | 40kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.45V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
HCPL-J312-300EOPTOISO 3.75KV GATE DRVR 8DIP GW |
5,525 | 3.94 |
FFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Surface Mount |
